Denon PMA-60 - Integrated Stereo Amplifier

Sale priceRs. 69,900


Enjoy high-resolution stereo sound with the Denon PMA-60 Digital Integrated Stereo Amplifier. The unit features a Class-D amplifier section that incorporates Qualcomm DDFA technology to produce a nuanced yet powerful sound with up to 25W of power per channel at 8 Ohms. When connected to a Mac or Windows computer via the USB-DAC port, the integrated DAC utilizes Advanced AL32 digital audio processing to playback PCM files up to 384 kHz/32-bit, with enhanced dynamic range and improved resolution at low level.

The PMA-60 allows you to input digital audio signals via two optical ports and one coaxial port. The stereo RCA aux input lets you connect an analog device such as a CD player. Bluetooth connectivity with NFC and aptX low latency enables you to stream audio tracks from your Bluetooth-enabled portable devices, with no lip sync issues when playing back audio from video sources.

The headphone output on the front panel features an adjustable output impedance, to ensure optimal sound quality, whether listening to your music with home or professional studio headphones. A crisp OLED display shows the source selected, the sampling frequency and data format, as well as the volume setting when you turn the volume knob.

The PMA-60 ships with a remote control and a USB cable.

Powerful and Detailed Sound

  • Class-D amplifier section incorporates Qualcomm DDFA technology, which realizes higher signal-to-noise ratio and lower distortion compared to conventional Class-D amplifiers.
  • 25W + 25W output at 8 Ohms delivers a nuanced yet powerful sound.
  • Multi-way speaker connectors let you connect speaker cables via bare wire, pin connectors, or banana plug connectors

Advanced AL32 Digital Audio Processing

  • The PMA-60 features the company's Advanced AL32 digital audio processing system, for high-fidelity with your favorite digital audio tracks—also used in Denon's premium audiophile disc players and digital audio components.
  • Advanced AL32 processing converts 16-bit audio signals to 32-bit and 44.1 kHz sampling signals are up-sampled by 16x, to achieve a smoother recreation of sound waves.
  • Data interpolation achieves distortion-free rendering, accurate sound localizing, and rich bass that is faithful to the original sound.
  • Delivers enhanced dynamic range and improved resolution at low level.

High-Resolution Audio via Your Computer

  • Connect your Mac or Windows computer via the USB Type-B input on the back panel.
  • Play back high-resolution PCM files up to 384 kHz / 32-bit along with high-resolution DSD 2.8, 5.6, and 11.2 MHz files.
  • Noise isolation block prior to the digital amplifier and D/A conversion block prevents digital noise from degrading the audio fidelity.
  • USB Type-A to USB Type-B cable is included.

Digital Audio Inputs

  • Compatible with a wide range of digital input equipment.
  • Two optical digital input ports and one coaxial digital input port to enable connection to a TV or other digital devices.

Bluetooth with NFC and aptX Low Latency

  • Stream your favorite audio tracks from your Bluetooth-enabled portable devices via Bluetooth connectivity.
  • Quick and easy pairing via the Bluetooth button on the front panel.
  • Stores pairing information for a maximum of 8 devices.
  • NFC (Near Field Communication) function for faster pairing.
  • Multi-point Bluetooth connectivity that allows three Bluetooth-enabled devices to be connected simultaneously.
  • Qualcomm aptX Low Latency decoding provides optimum time synchronization when playing back audio from video sources with no lip sync issues.

Headphone Output

  • Dedicated headphone amplifier circuit features a high-speed, ultra-low-distortion, wide-band op amp that's paired with a fully discrete final output stage.
  • Adjustable headphone output impedance, with 3 settings for low-, medium-, and high-impedance headphone types.
  • 1/4" / 6.3mm connector for compatibility with premium home and studio headphone models.

Compact Chassis with Vertical or Horizontal Placement

  • For optimum placement versatility, the PMA-60 can be positioned either horizontally or vertically.
  • Removable feet and included screw caps are quickly and easily re-configured.

Elegant Design

  • Elegant design with a combination of soft-look aluminum, bright silver tone accents, and a mixture of glossy and matte-black surfaces.
  • Crisp OLED display shows the source selected via graphical icons and text, as well as the sampling frequency and data format of digital sources.

Remote Control

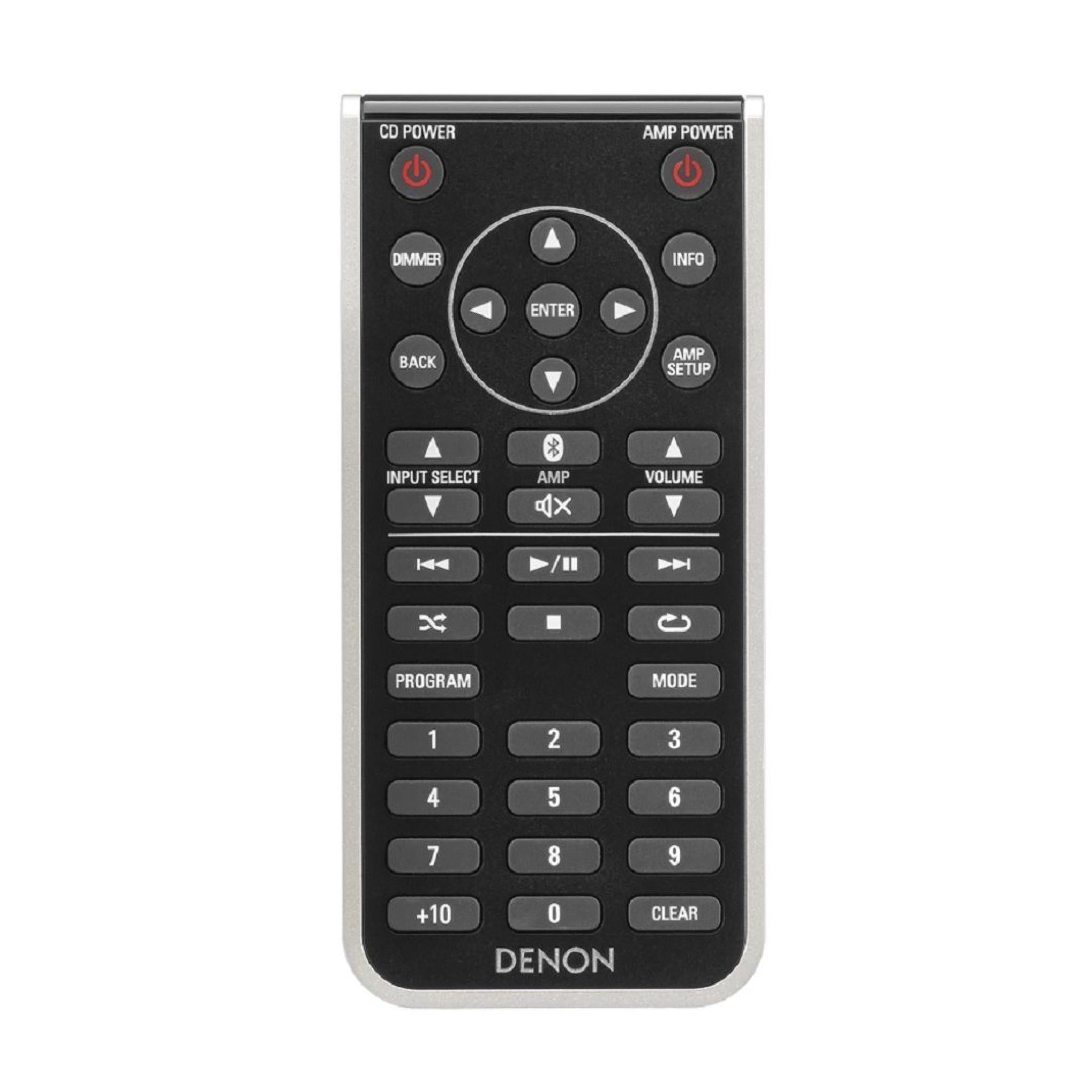

  • The supplied remote control features an ergonomically-designed layout that includes a cursor keypad, source select, volume controls, setup menu, back buttons, a Bluetooth button, and a display dimmer button.
  • The remote has a 23' range.

Other Features

  • 1 x stereo analog audio input
  • 1 x subwoofer output (pre-out) used to connect a powered subwoofer
  • Balance, Bass, and Treble controls.
  • Source Direct Mode bypasses the sound-quality adjustment circuits for more faithful reproduction of original audio.
  • Auto Standby automatically switches the unit to the standby mode when there is no input signal and operation for 30 minutes.




Class-D, with Qualcomm DDFA technology

Power Output

  • 8 Ohms: 25 W + 25 W (1 kHz, T.H.D. 0.1%)
  • 4 Ohms: 50 W + 50 W (1 kHz, T.H.D. 1.0%)

Speaker Impedance

4 to 16 Ohms

Total Harmonic Distortion

0.004% (digital in, rated output -3 dB, 8 Ohms, 1 kHz)

S/N Ratio

110 dB (digital in, 25 W, 8 Ohms, 1 kHz, IHF-A)

Digital Input Signal

Audio Formats:

  • Digital audio interface (Linear PCM)
  • Coaxial Input: 0.5 Vp-p/50 Ohms
  • Optical Input: More than -27 dBm
  • Wavelength: 660 nm

Input Sensitivity

Aux: 0.13 V, 22 kOhms

Audio Inputs

Analog Aux Input:

  • 1 x stereo RCA pair (L/R)
  • USB-DAC port: 1 x USB Type-B
  • Digital Audio: 2 x optical ports and 1 x coaxial port

Audio Outputs

Speaker Terminals:

  • 2 x speaker binding post pairs for bare wires, pin connectors, banana plug connectors
  • Subwoofer Terminal (Pre Out): 1 x RCA, for powered subwoofer
  • Headphones: 1 x 1/4" / 6.3 mm jack


Communication System:

  • Bluetooth version 3.0
  • Transmission Power: Maximum 2.5 mW (Class 2)
  • Maximum Communication Range: Approximately 32.8' / 10.0 m in line of sight
  • Frequency Band: 2.4 GHz band
  • Modulation Method: FHSS (frequency-hopping spread spectrum)
  • Supported Profiles: A2DP 1.3, AVRCP 1.5
  • Supported Codecs: aptX Low Latency, AAC, SBC
  • Supports NFC function

Other Ports

1 x AC power input


  • DSD (2-Channel)
  • Sampling Frequency: 2.8, 5.6, 11.2 MHz
  • Bit Length: 1-bit
  • Linear PCM (2-Channel)
  • Sampling Frequency: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
  • Bit Length: 16-, 24-, 32-bit

Coaxial / Optical

  • Linear PCM (2-channel)
  • Sampling Frequency: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Bit Length: 16-, 24-bit


  • Mac OS X 10.10, 10.11
  • macOS 10.12


Windows 7, 8, 8.1, 10


USB 2.0: USB high speed, USB Audio Class version 2.0

Power Supply

120 VAC, 60 Hz

Power Consumption

  • Typical: 35 W
  • Standby: 0.2 W


10.2 x 7.9 x 3.4" / 258.0 x 200.0 x 86.0 mm


6.0 lb / 2.7 kg
