Denon AVR-X3600H - 9.2 Channel AV Receiver

Rs. 129,900

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available

Discontinued



There is a newer model of this item:

Categories: Audio Components, AV Receivers, Denon, Tags:
Description

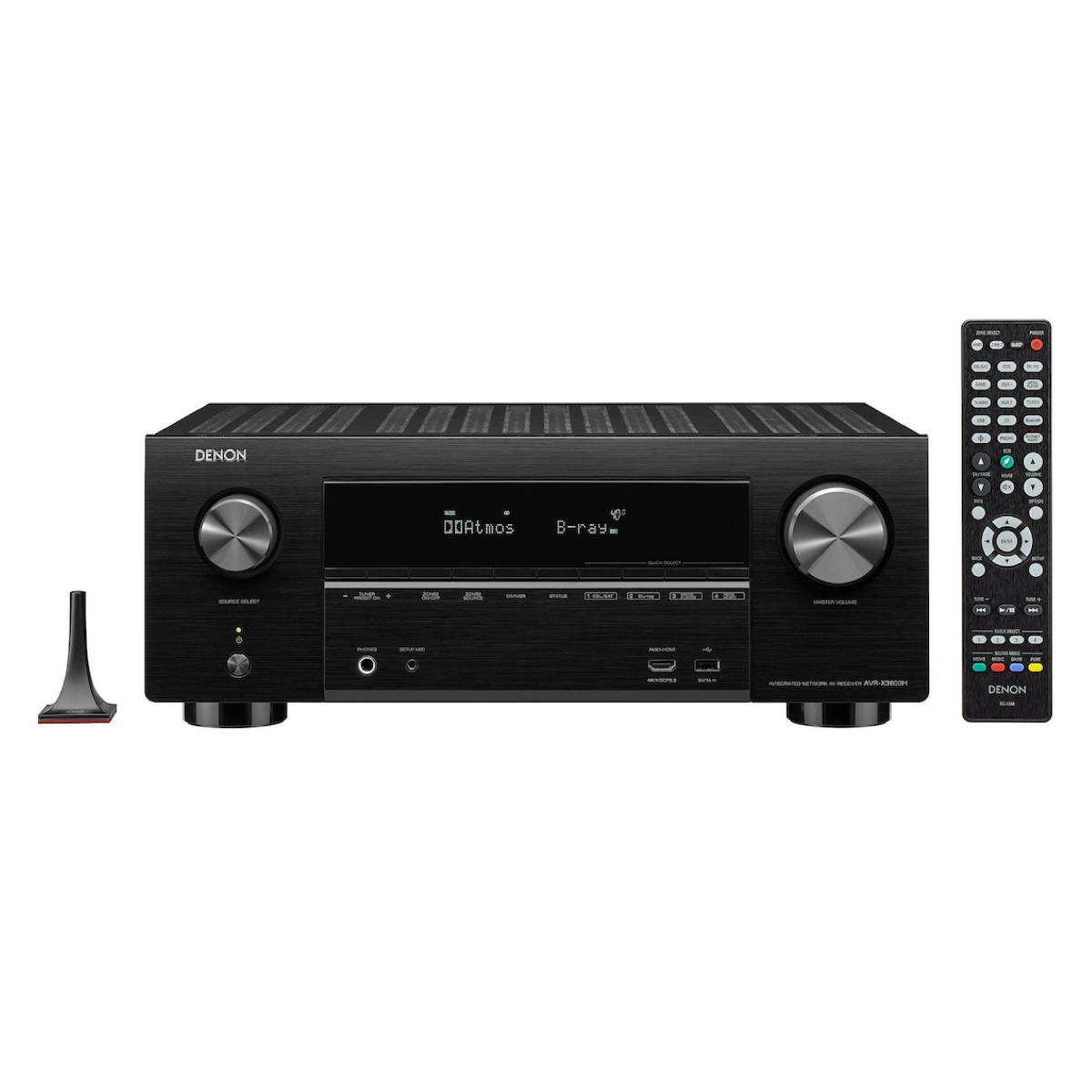

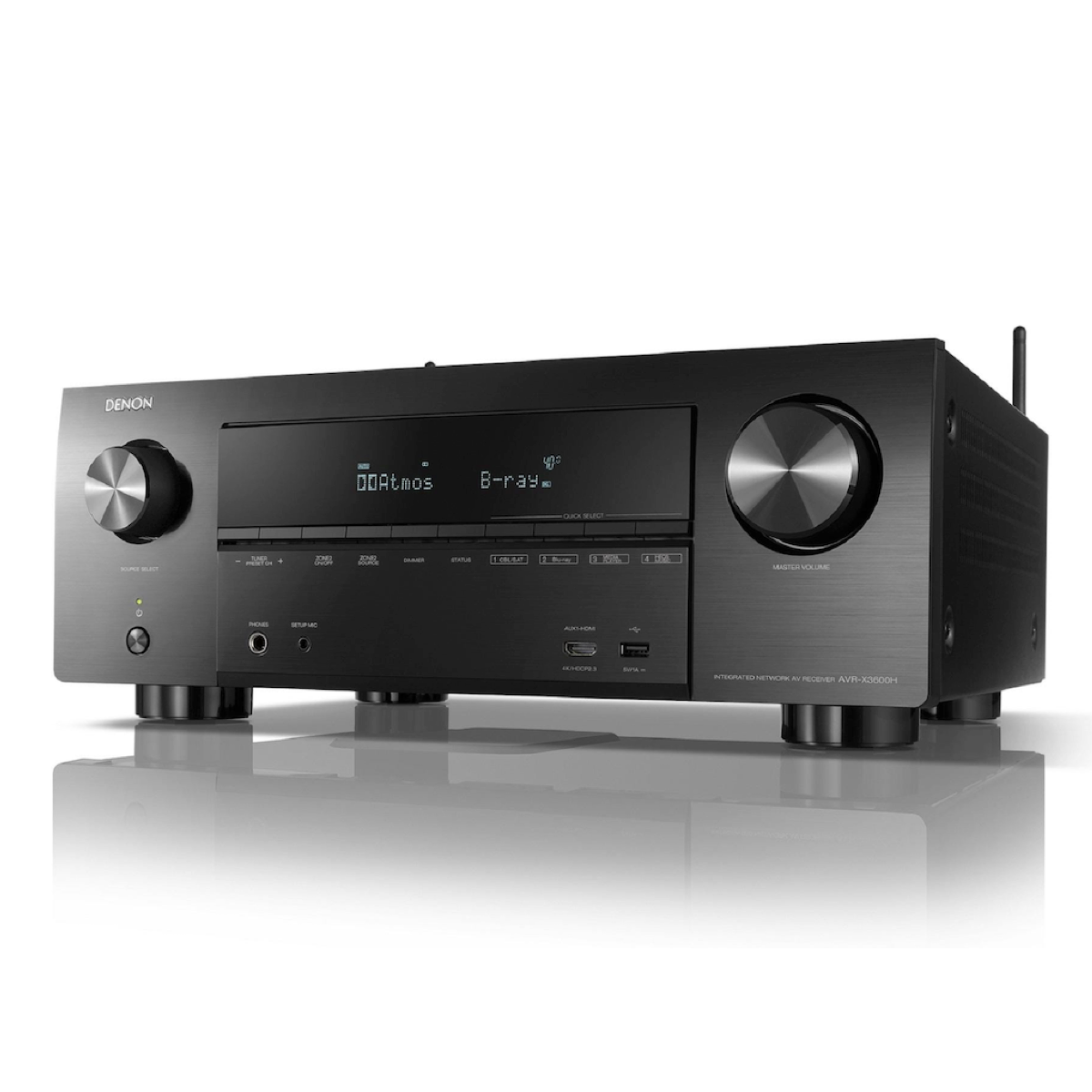

DENON AVR-X3600H

9.2 channel 4K Ultra HD AV receiver with 180W per channel and advanced HDMI (8in / 3out with eARC) section. Supports 3D audio formats Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™, DTS Virtual:X® and new IMAX Enhanced. Works with Amazon Alexa, Google Assistant, and Apple Siri for seamless voice control.

Overview

Immerse yourself in high-power home theater with the Denon AVR-X3600H. With 180W per channel, the performance-tuned Denon amplifier delivers an amazing 3D audio experience with support for Dolby Atmos®, DTS:X™, DTS Virtual:X®, Dolby Atmos Height Virtualization Technology and new IMAX Enhanced. Supports the latest 4K video technologies — including Dolby Vision™ Compatable, HDR10, and HLG as well as 4K video upscaling— to ensure your TV or projector powers the ultimate in picture brightness, contrast and clarity. ALLM is supported for the best gaming experience.

The 8 HDMI inputs and 3 outputs with eARC and full HDCP 2.3 support on all ports are compatible with the latest HD and Ultra HD TVs, Blu-ray players and game consoles. The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6MHz files). Stream popular music services like Spotify® Premium and free, Amazon Music, Tidal, Deezer and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. Works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control. The powerful DSP is capable of 11.2 channel processing, allowing you to extend the system with an additional power amplifier.

By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theater is different — that’s why Denon uses the premium MultEQ XT32 room calibration technology from Audyssey that automatically measures your room acoustic and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.

Features

  • 9.2 channel AV receiver with 180W per channel and 11.2 channels of processing (preamp): Nine powerful amplifiers tuned to provide the classic and dynamic Denon sound experience
  • IMAX Enhanced Technology: Delivers a true IMAX cinema experience at home
  • Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X supported by 11.2ch processing: Enjoy an immersive, three-dimensional audio experience up to 7.2.4 with 9ch integrated amplification and an additional 2ch amplifier
  • Amazon Alexa, Google Assistant and Apple Siri voice control: Use your voice to control the AVR-X3600H and wireless music services hands-free
  • 8 HDMI inputs with full HDCP 2.3 support, 3 HDMI outputs: Connect up to eight media devices and output to two main displays and one zone display
  • Enhanced Audio Return Channel (eARC): Supports Dolby Atmos and DTS:X from your TV audio signal via HDMI uncompressed
  • 4K Upscaling, Dolby Vision Compatible, HDR10, HLG, 4:4:4 colour resolution and BT.2020: Provides the greatest video quality with exceptional brightness, contrast and colour
  • Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box setup experience
  • AirPlay2, Bluetooth, Internet Radio, Spotify Premium and free, Amazon Music, Tidal, Deezer, Network Audio Streaming: Access to a wide array of unlimited online music sources
  • HEOS Built-in wireless multi-room music streaming technology: Listen from any room for a connected, whole-home audio experience
  • Built-in Wi-Fi with 2.4GHz/5GHz dual band support, plus built-in Bluetooth®: Stable wireless network connectivity even in congested environments
  • High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support: High-resolution audio streaming for Hi-Fi enthusiasts
  • Audyssey MultEQ XT32, Dynamic Volume and Dynamic EQ, LFC and Sub EQ HT: Automatcially optimizes audio for your unique listening environment, including subwoofer equalization
  • Game Mode: Supports Auto Low Latency Mode (ALLM) for lag-free gaming (requires supported 4K display and game console)

POWERFUL 9-CHANNEL AMPLIFIER WITH ADVANCED HOME CINEMA SPECS

Featuring discrete high-current amplifiers on all channels, the AVR-X3600H delivers high-power performance at 180W per channel. The AVR-X3600H supports three-dimensional sound formats Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X and the all new IMAX Enhanced. The advanced HDMI section features HDCP 2.3 support and advanced video processing with 4K scaling for HDMI sources, plus a 12V trigger output to connect an external device.

IMAX ENHANCED TECHNOLOGY

Get the most premium at-home entertainment experience with IMAX Enhanced — the latest technology from DTS that sets a new standard for home theater imaging, sound, scale and clarity. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX.

DOLBY ATMOS

Immerse yourself in multi-dimensional audio with Dolby Atmos. Using the 9 powered channels, set up a 5.2.4 or 7.2.2 Dolby Atmos surround sound system.

Take advantage of the two AVR-X3600H pre-outs to set up a 7.2.4 Dolby Atmos surround system – use nine channels of amplification built-in to the AVR-X3600H and add a two-channel amplifier to power 2 additional surround speakers, Dolby Atmos elevation speakers, or dedicated overhead speakers for the ultimate home theater experience.

ADVANCED HDMI VIDEO SECTION WITH EARC

The AVR-X3600H features 8 HDMI inputs and 3 outputs that support 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, Dolby Vision Compatible, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), eARC, 3D and BT.2020 pass-through support for exceptional colour, clarity and contrast.

eARC (Enhanced Audio Return Channel) supports the transmission of uncompressed immersive audio from your TV with a single HDMI cable for the simplest setup.

HDR/DOLBY VISION

The AVR-X3600H supports High Dynamic Range (HDR10) video format, Dolby Vision Compatible and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast and colour, and HLG offers HDR10 technology over broadcast content.

AUDYSSEY ROOM CORRECTION

Optimize your audio experience with Audyssey MultEQ XT32 for seamless setup of your listening environment. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker's output (including subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range

HIGH-RESOLUTION AUDIO

Enjoy superb audio fidelity with your favourite high-resolution audio tracks. The AVR-X3600H with AKM AK4458 32-bit D/A converters features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/192-kHz. It’s also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB, or over network sources. The AVR-X3600H also supports other file types such as MP3 and WMA.

DUAL SUBWOOFER OUTPUTS

Immerse yourself in evenly distributed, accurate bass. The AVR-X3600H features two subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips — just powerful, room-filling bass.

SPECIFICATIONS

Channels

  • 9.2
  • 11.2 with Additional Amplifier

Output Power

  • 105 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD
  • 135 W per Channel @ 6 Ohms, 1 kHz, 0.7% THD

Object-Based Audio Support

Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X

Output Impedance

4 to 16 Ohms

Pass-Through

4K, HDR10, HLG, Dolby Vision, ALLM


HDCP Version

2.3

Tuner

AM / FM

Wireless Connectivity

Bluetooth, Wi-Fi, Apple AirPlay 2

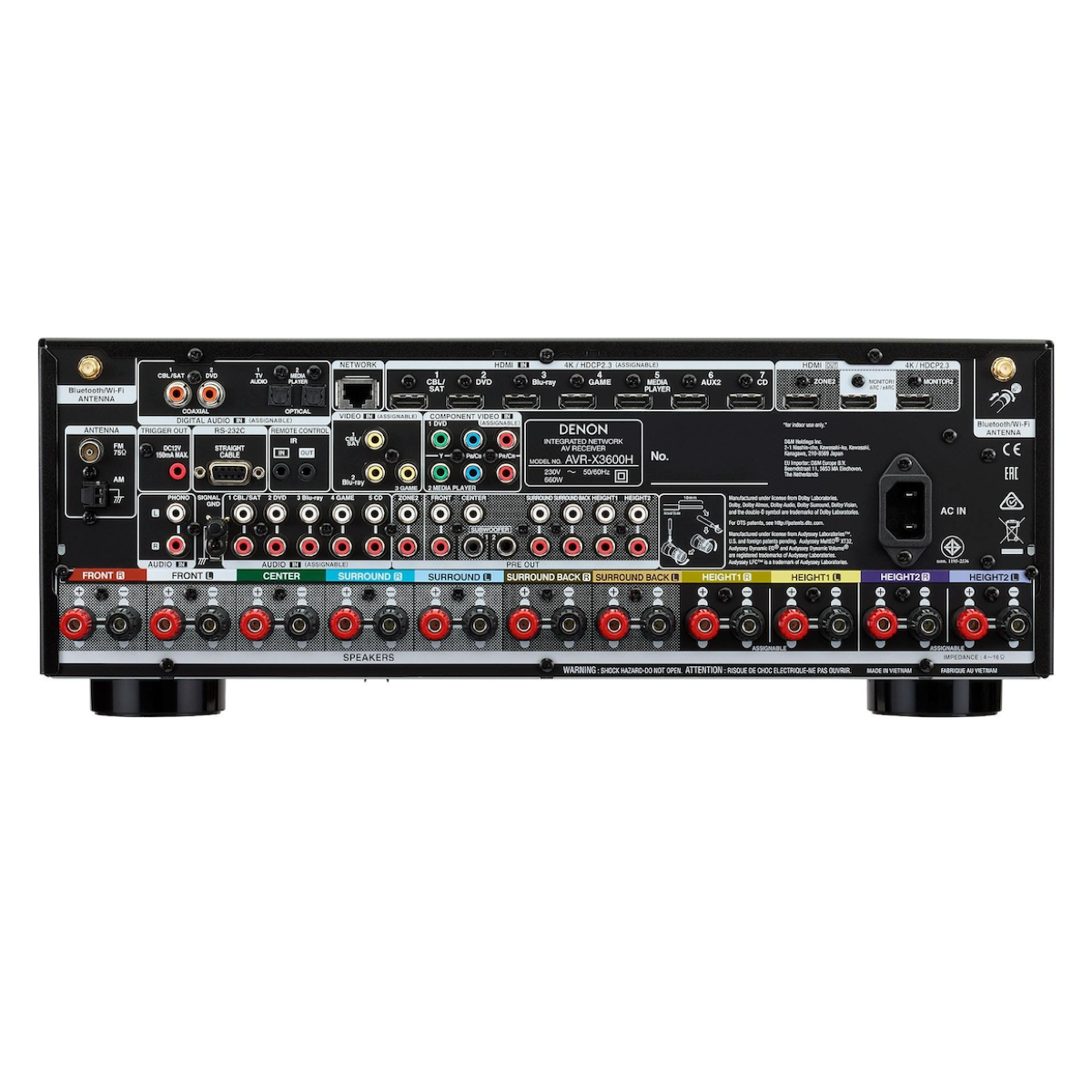

Inputs

  • 8 x HDMI (1 Front)
  • 2 x Optical TOSLINK
  • 2 x RCA Digital Coaxial
  • 2 x 3RCA Component Video
  • 3 x RCA Composite Video
  • 6 x Stereo RCA Audio (1 Phono with Ground Screw)

Outputs

  • 3 x HDMI
  • 1 x 3RCA Component Video
  • 2 x Subwoofer Pre-Out
  • 1 x 11-Channel RCA Pre-Out
  • 1 x Zone 2 Stereo RCA Pre-Out
  • 1 x 1/4" / 6.35 mm Headphone (Front)

Other Ports

  • 1 x USB (Front)
  • 1 x 1/8" / 3.5 mm Setup Microphone Input (Front)
  • 1 x FM Antenna
  • 1 x AM Antenna
  • 1 x RJ45 Ethernet LAN
  • 1 x 1/8" / 3.5 mm IR Remote In
  • 1 x 1/8" / 3.5 mm IR Remote Out
  • 1 x 1/8" / 3.5 mm 12 VDC Trigger Out
  • 1 x DE-9 RS-232C
  • 2 x Bluetooth / Wi-Fi Antenna Terminals

Speaker Connectors

11 x Color-Coded Binding Post Pairs

Operating Temperature

41 to 95°F / 5 to 35°C

Power Consumption (Active)

660 W

Dimensions (W x H x D)

  • 17.09 x 9.33 x 15.39" / 434 x 237 x 391 mm with Antennas Up
  • 17.09 x 6.58 x 15.39" / 434 x 167 x 391 mm with Antennas Down

Weight

26.68 lb / 12.1 kg
