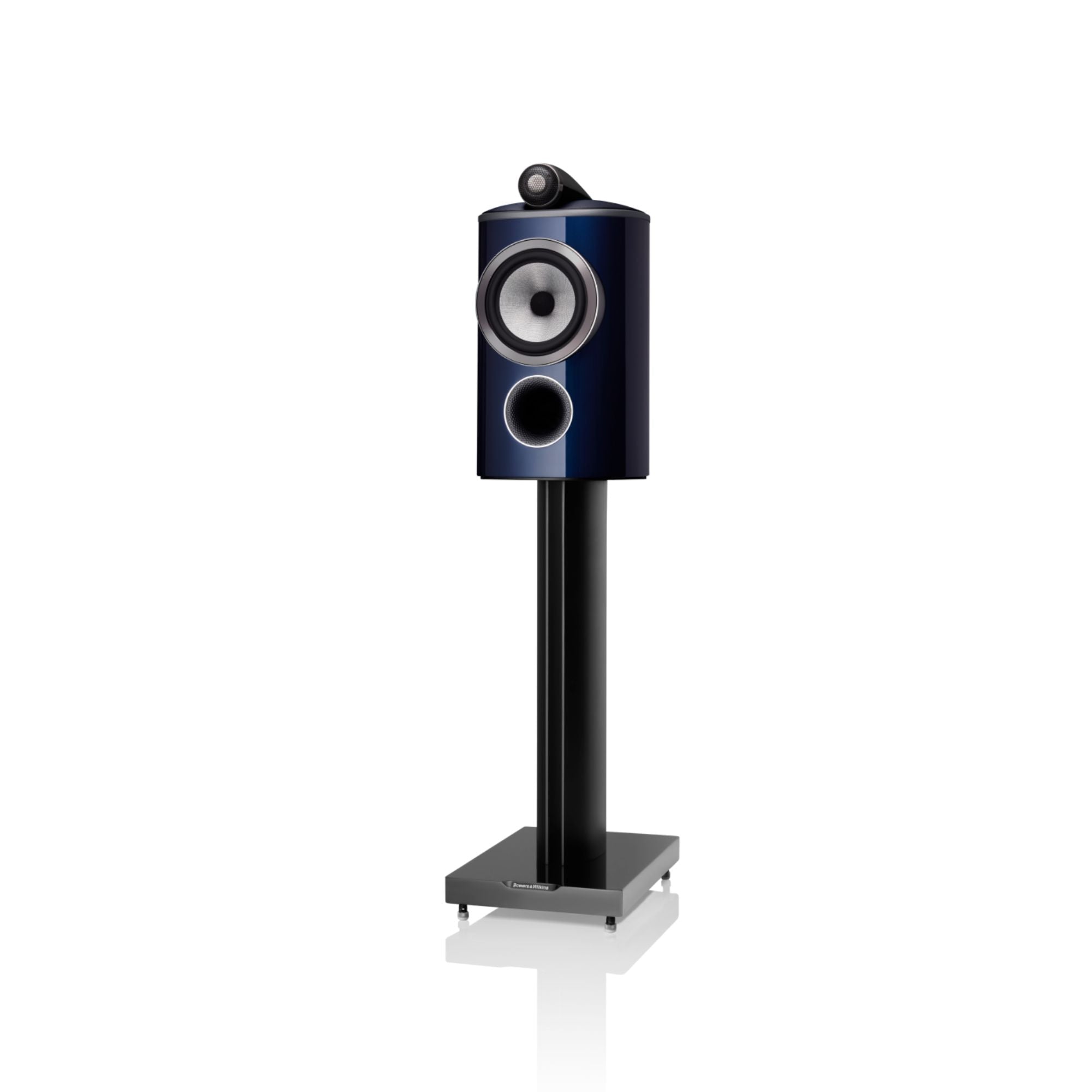

Bowers & Wilkins 805 D4 Signature - Bookshelf Speaker - Pair

Color: Midnight Blue Metallic
*4 - 6 weeks for delivery once ordered
  • Description
  • Specifications
  • Reviews

The 805 D4 Signature stand-mount loudspeaker features optimized technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top, an all-new tweeter grille, and upgraded crossover.

805 D4 Signature features their Diamond Dome tweeter and Solid Body Tweeter-on-Top.

Compact and powerful

The 805 D4 Signature stand-mount loudspeaker is compact and powerful. It features fully optimized technologies, including their Diamond Dome tweeter and Solid Body Tweeter-on-Top. It's proof positive that small can still be beautiful.

Diamond Dome tweeter

One of Bowers & Wilkins most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after they introduced it, they haven't found a better tweeter dome technology.

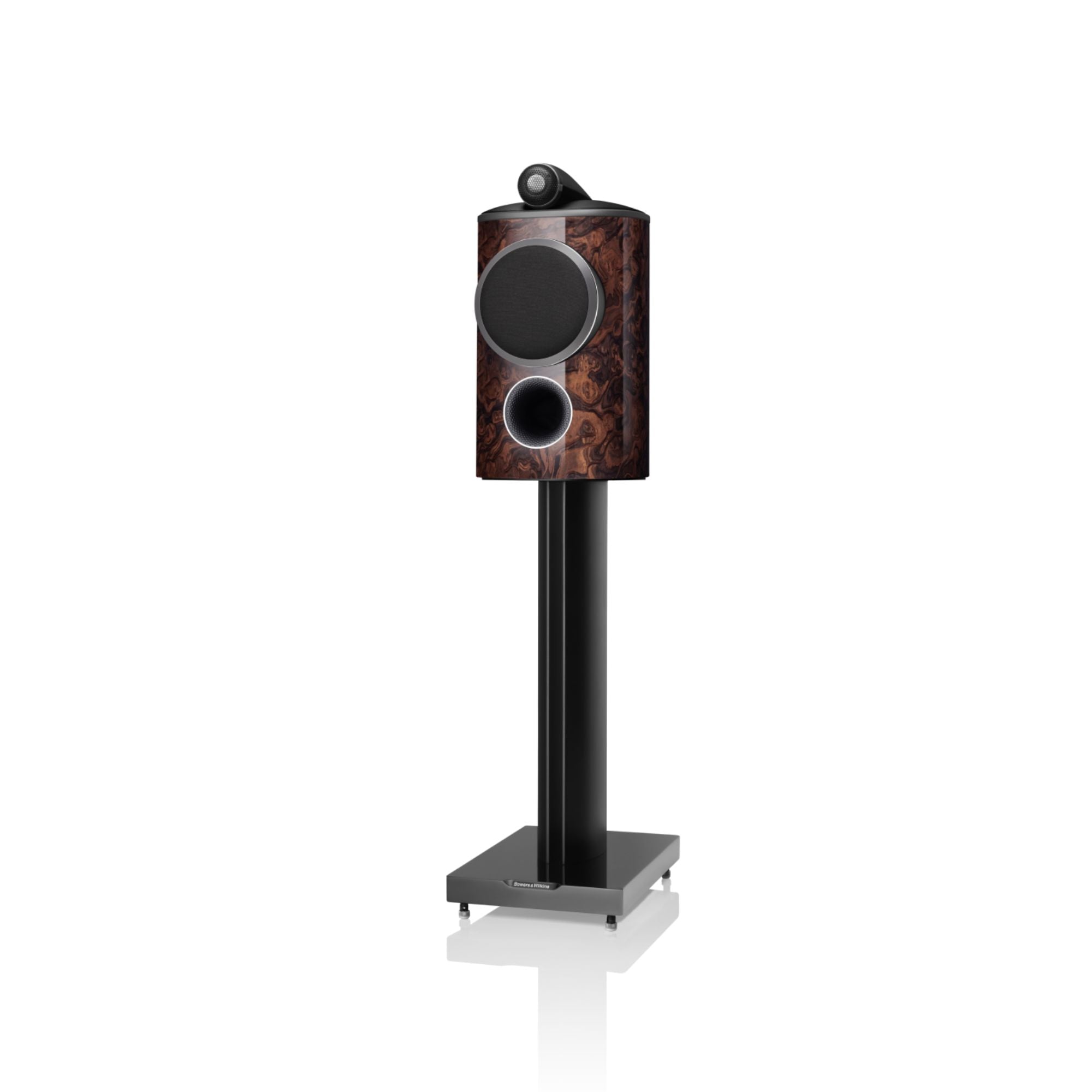

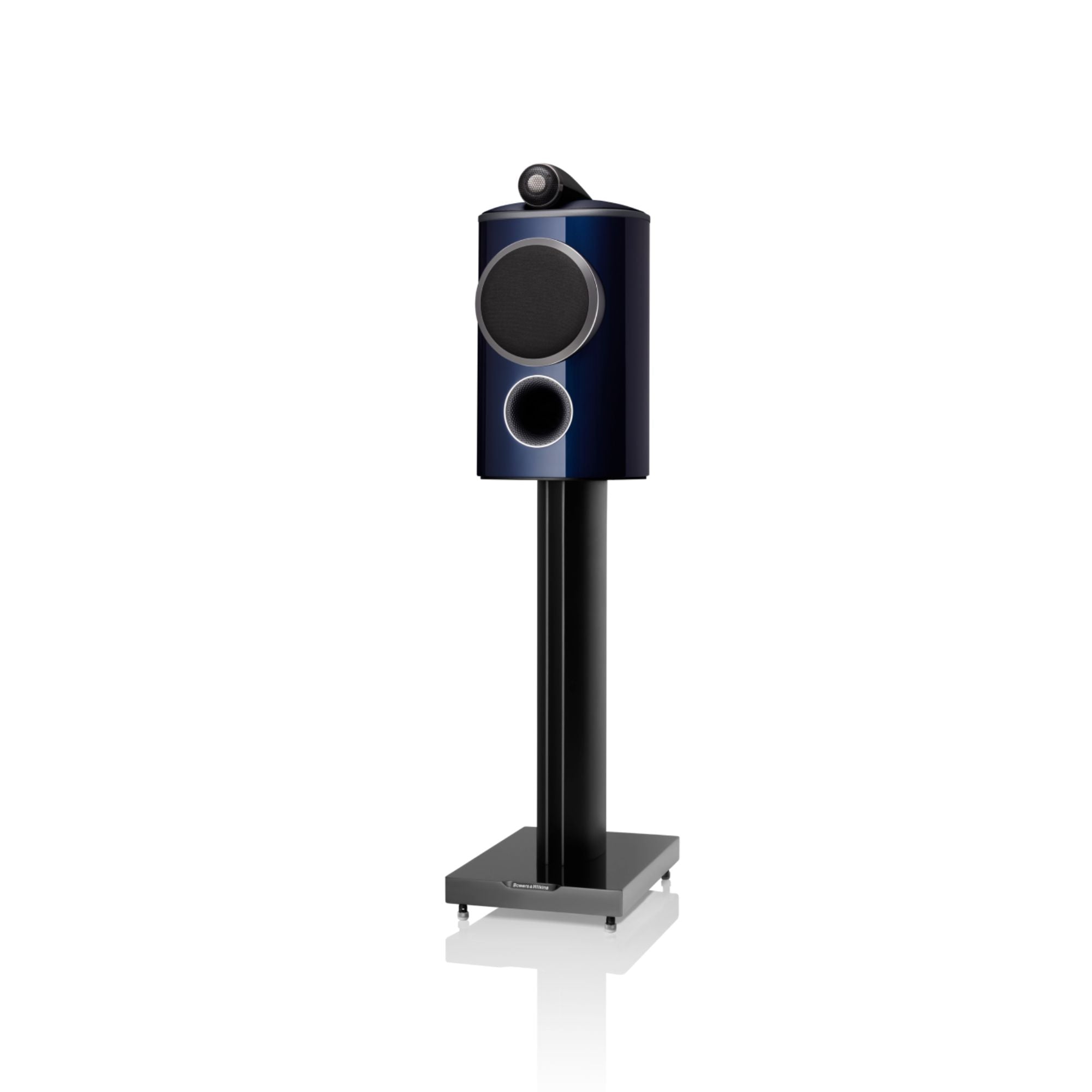

All-new tweeter grille

Bowers & Wilkins Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies.

Upgraded crossover

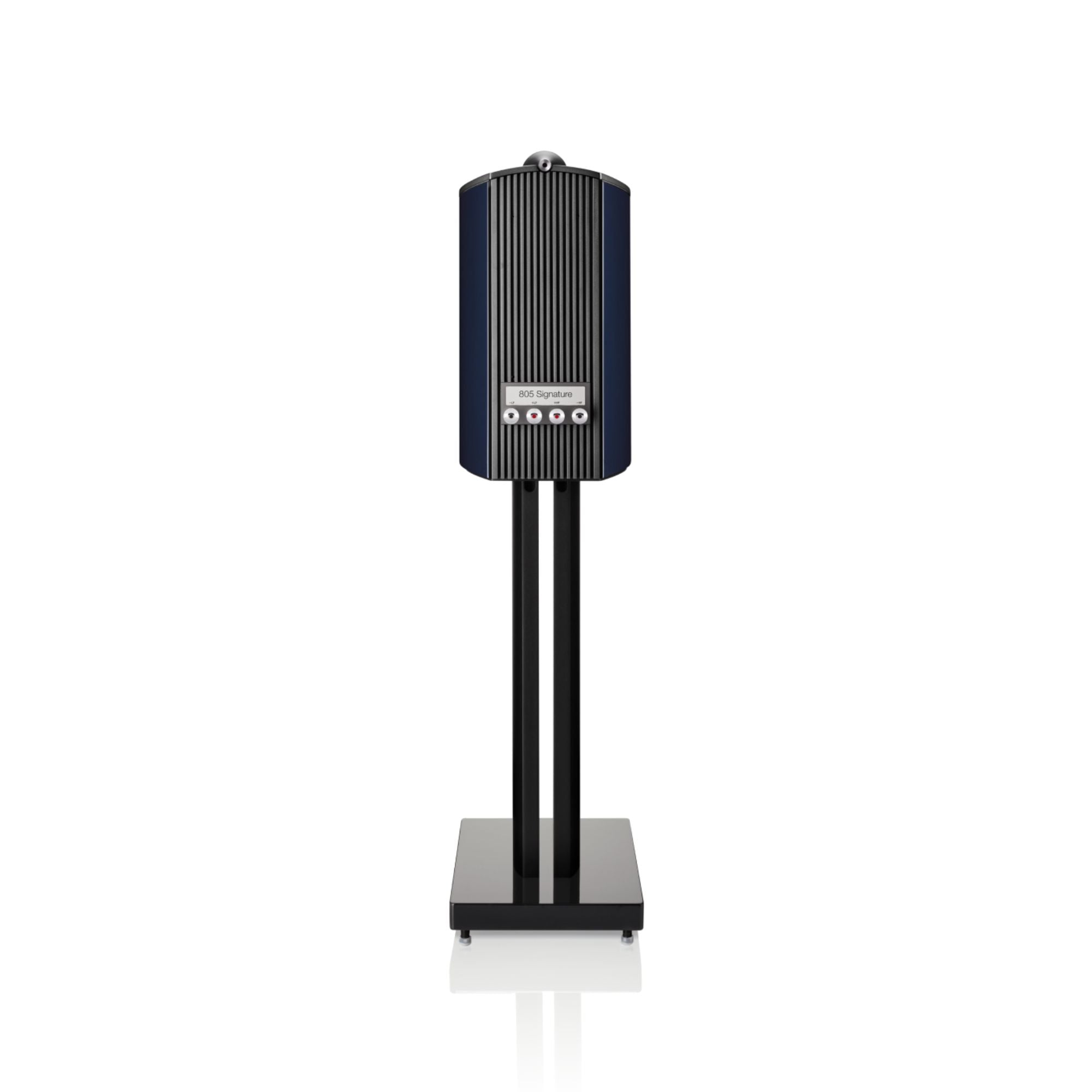

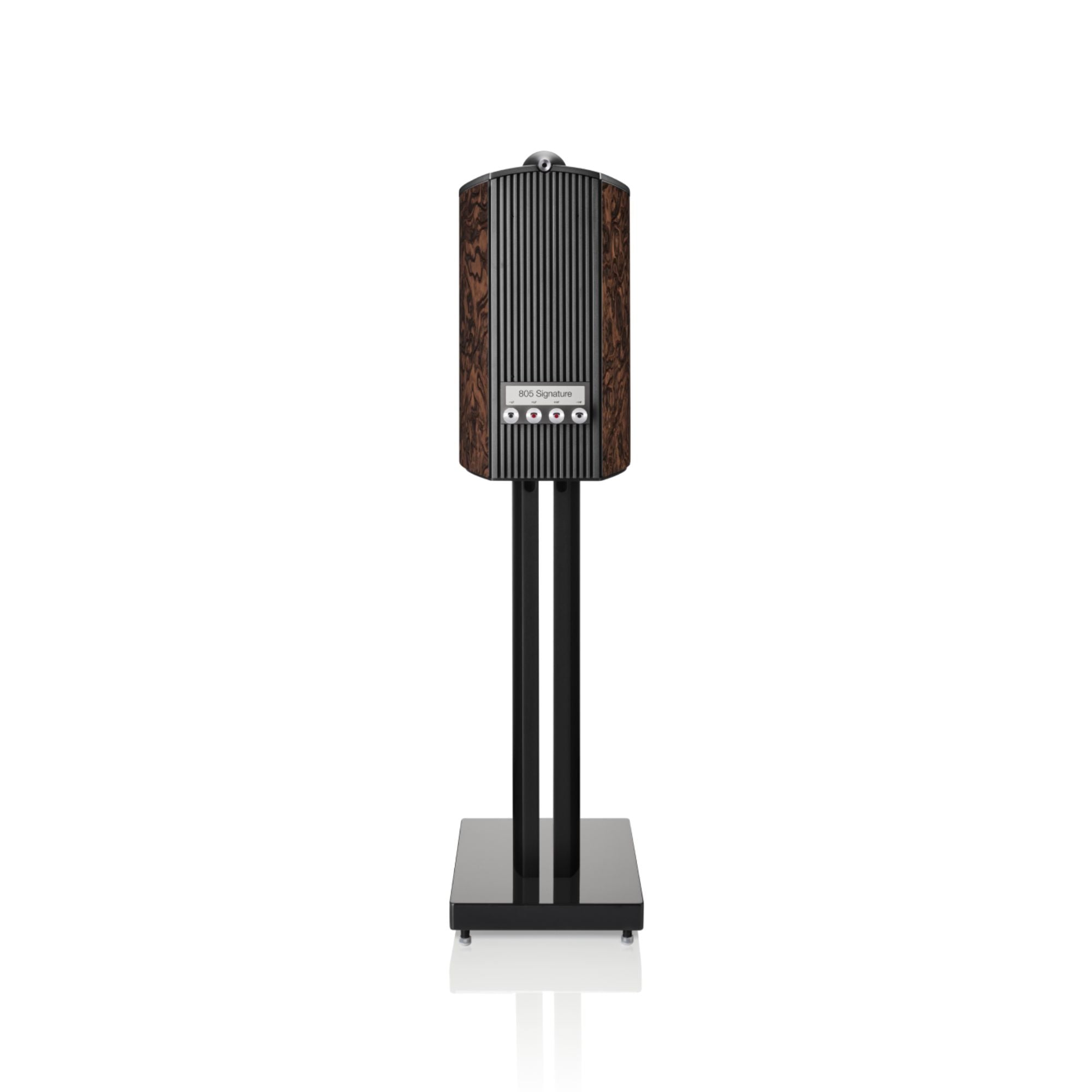

Bowers & Wilkins 805 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ Cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance from the 805 D4 Signature. Voices and instruments can be heard with precision and transparency.

Technical features

Diamond tweeter

Solid Body Tweeter-on-Top

Continuum™ cone bass/midrange


Anti-Resonance plug



2-way vented-box system

Drive units

1x ø25mm (1in) Diamond Dome high-frequency

1x ø165mm (6.5in) Continuum™ cone bass/midrange

Frequency range

-6dB 34Hz to 35kHz

Frequency response

42Hz to 28kHz ±3dB


88dB spl (2.83Vrms, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)

<1 % 90Hz - 20kHz

<0.3% 120Hz - 20kHz

Nominal impedance

8Ω (minimum 4.6Ω)

Recommended amplifier power

50W - 120W into 8Ω on unclipped programme

Max recommended cable impedance


Cabinet finishes

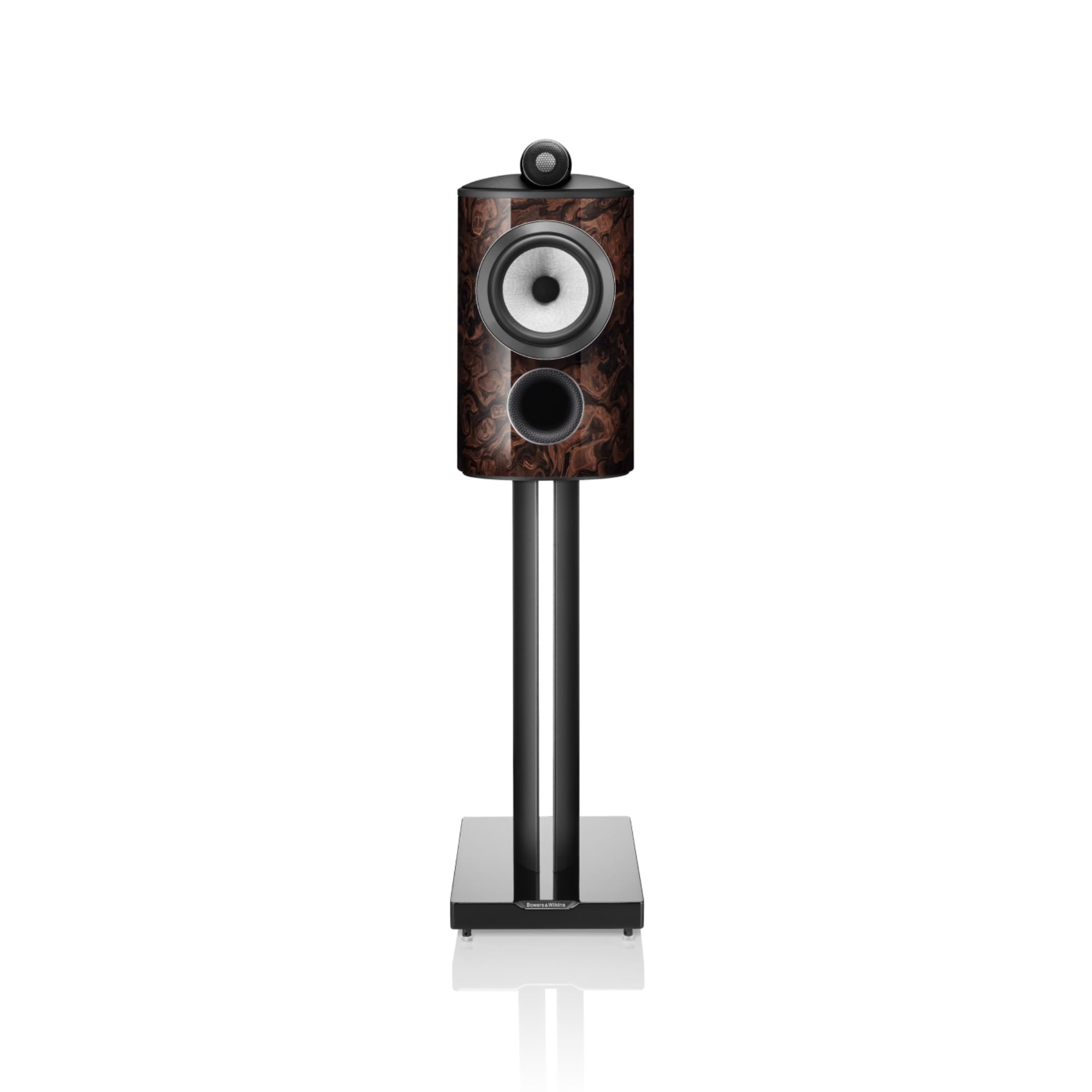

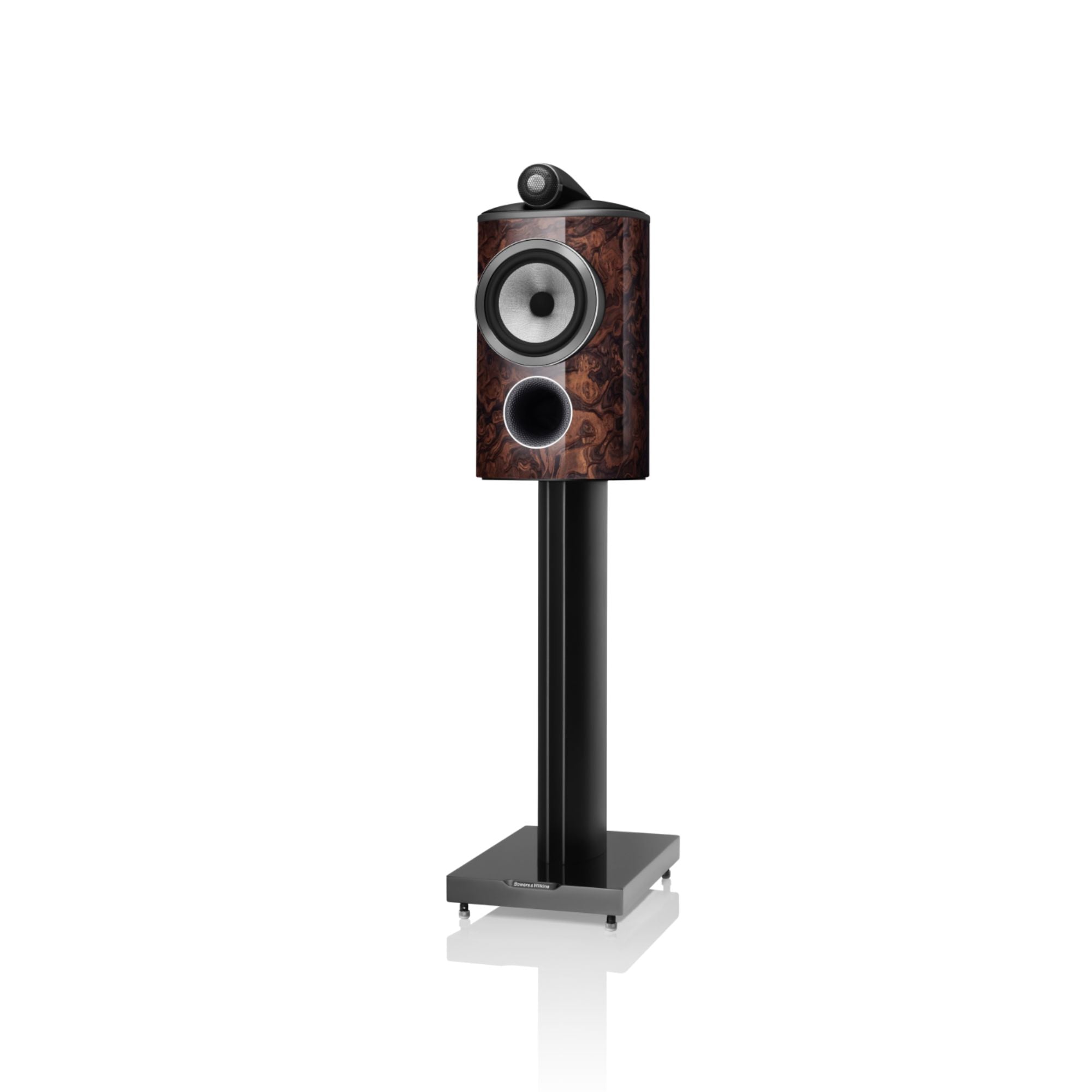

California Burl Gloss

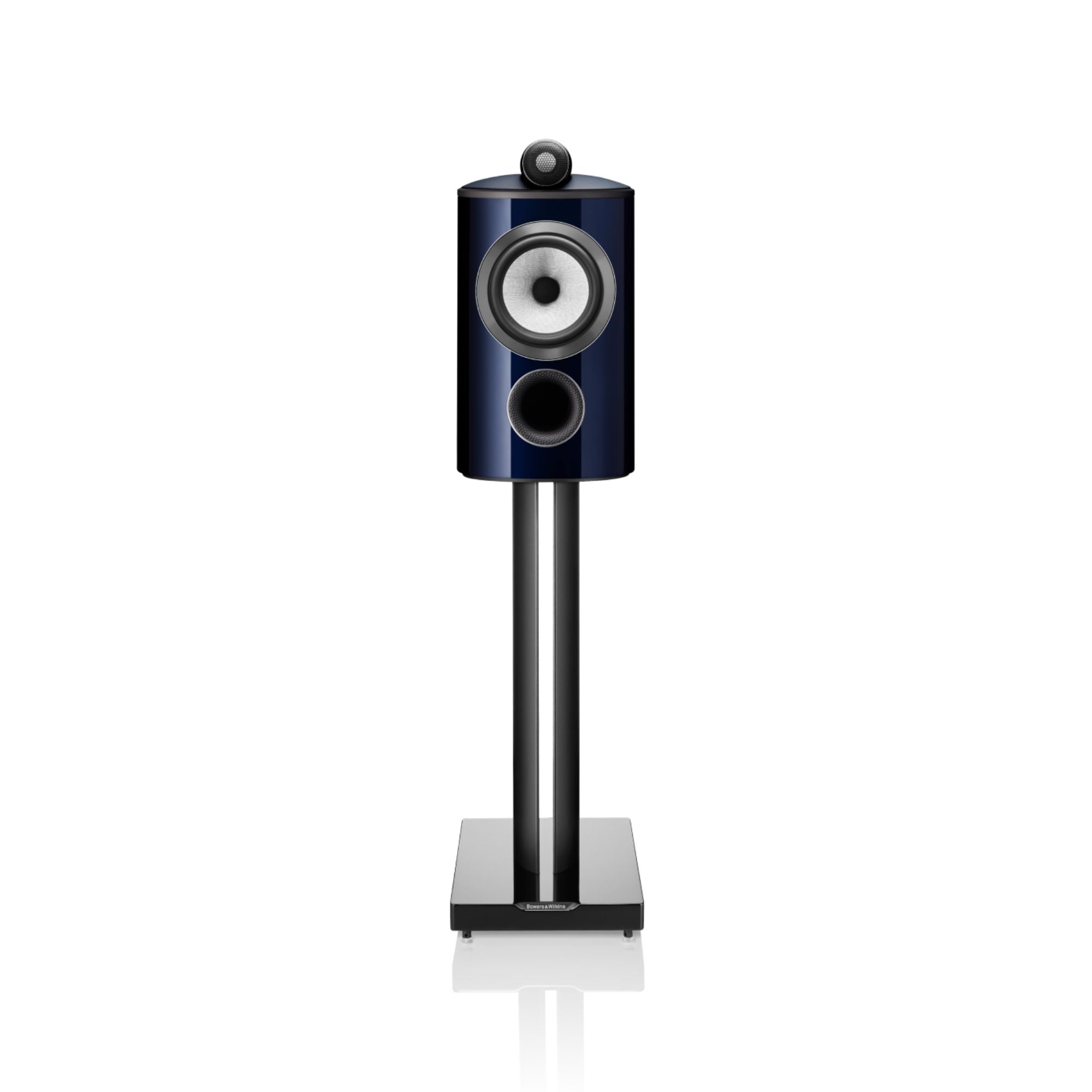

Midnight Blue Metallic


Height: 440mm (17.3in)

Width: 240mm (9.4in)

Depth: 373mm (14.7in)

Net weight

15.55kg (34.3 lb)
