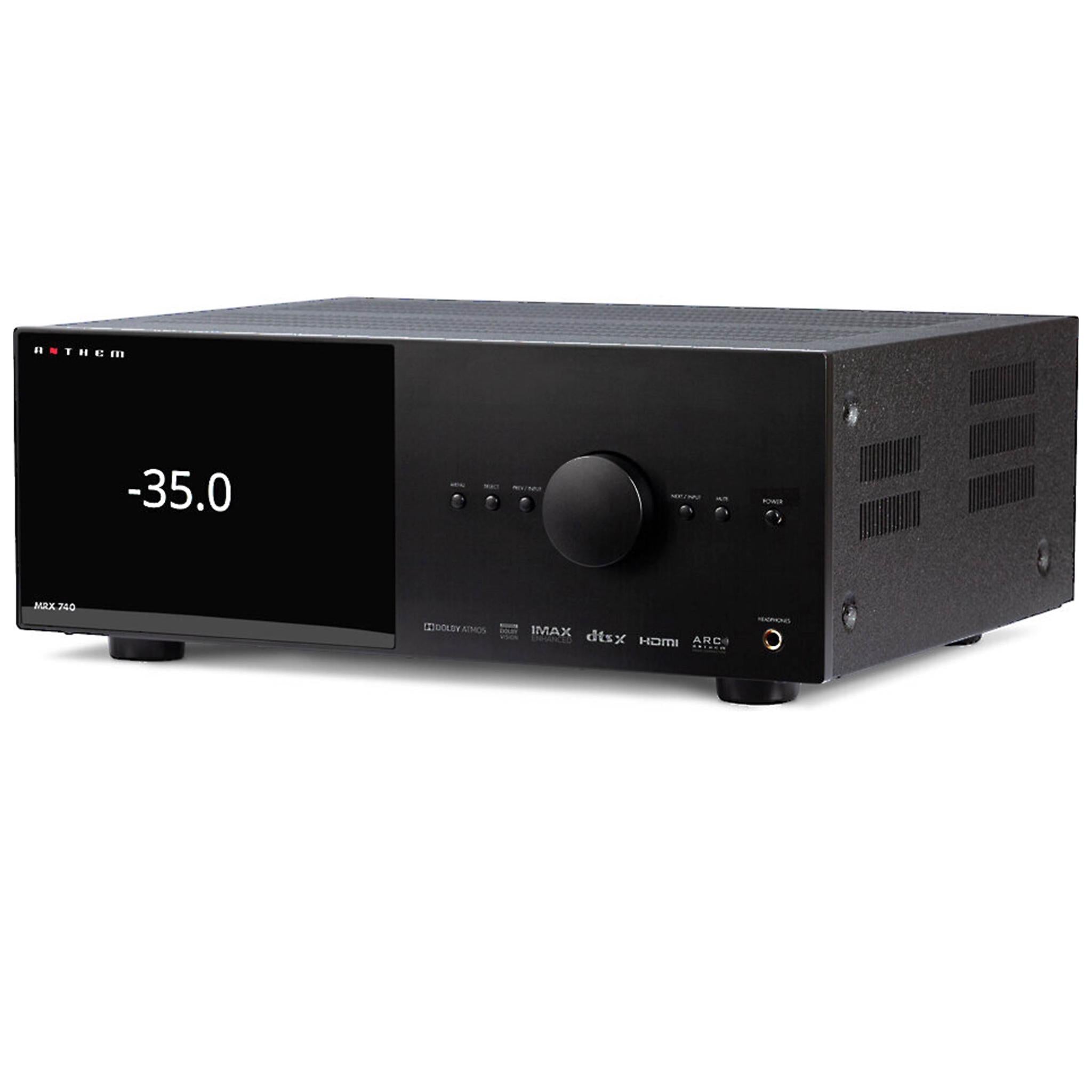

MRX 740 8K

ANTHEM – PURE PERFORMANCE, PURE VALUE

Anthem’s MRX A/V Receivers are about maximizing performance for the money. Building on the feature set of our previous models, They've added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.

The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 HDMI inputs and 2 outputs, plus eARC. Ultra HD signals are passed through unaltered up to 18.2 Gbps with Dolby Vision, HDR and Hybrid Log Gamma support.

INTRODUCING ANTHEM WEB USER INTERFACE

Anthem Web User Interface is now built in to all MRX Receivers and AVM Processors. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the main or second zone on and off, adjust volume, change audio modes or tweak channel trims for a perfect surround sound experience. Web UI can also be used to calibrate speaker delays and levels and configure network settings/control options. Source devices can be renamed, simplifying set up by enabling the elimination of unused inputs. Installers can import and export files to make remote management simple and convenient.

Channel Re-Assignment

MRX Series Receiver channels can be assigned in many ways. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).

Configure amplifier channels for your system's needs, then perfect the presentation with ARC Genesis.

Robust Integration

The Anthem MRX 740 features external control and IP control capabilities for easy customisation and compatibility with third-party integration solutions.

Design

Anthem has one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. They do this by spending thousands of hours selecting and testing components, carefully designed with their own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.

Features

• New Electronics platform, up to 11.2 pre-amplifier channels with 7 amplifier channels, HDMI 2.0b HDCP 2.2, hardware upgradeable to HDMI 2.1 (8K)
• On select models (MRX 1140, AVM 90 and AVM 70), object-oriented audio codecs have been updated to the latest version of DTS:X Pro.
• All object-oriented audio codecs have been updated to the latest version of DTS:X and Dolby Atmos.
• IMAX Enhanced
• ARC Genesis now features a more precise microphone, ensuring better results in any listening environment.
• Platform Agnostic Streaming with AirPlay2(coming soon), Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect (coming soon!) and Roon (coming soon!)
• Reliable Networking Platform with web-based setup and over-the-air updates
• Next-Generation DSP Platform
• Modernized Design with high resolution front panel display
• Amp matrixing with up to 6 re-assignable channels
• Independent HDMI Zone 2 output.

Audio Features

• 2 pre-amplifier channels with 7 amplifier channels. 140 watts per channel continuous power into 8 ohms.
• Amp matrixing with up to 6 re-assignable channels
• Two paralleled subwoofer outputs
• Auto Subwoofer Phase Adjustments (ARC Genesis)
• Auto Subwoofer Polarity Adjustments (ARC Genesis)
• Latest Implementation of ARC Genesis
• Four Speaker Profile Memories
• 2” / 5 cm Speaker Distance Increments
• 5dB Level Increments
• Super Sub Front Setting

HDMI & Video

• Dolby Vision
• IMAX Enhanced
• HDMI 2.0b & HDCP 2.2 (hardware upgradeable to HDMI 2.1 8K)
• HDMI eARC
• 4:4:4 Subsampling @4K60 (18.2 Gbps)
• High Dynamic Range (HDR)
• Hybrid Log Gamma (HLG)
• 2020 Color Gamut
• 4K 50/60 Switching
• Zone 2 HDMI Output
• Dual HDMI Outputs
• Standby Pass-Through

Decoding

• Dolby Atmos
• Dolby HD
• DTS:X
• DTS-HD Master Audio

Custom Installation

• IP Control
• RS-232 Control
• IR Input
• Three 12V Trigger Outputs
• Pre-made Control Drivers
• Save and Load Settings
• Import and Export Settings
• Rackmount kit (sold separately)

Streaming

• Google Chromecast Audio
• Bluetooth

Listening Modes

• Anthem Logic
• Dolby Surround
• DTS Neural:X
• DTS Virtual:X
• Stereo
• All Channel Stereo
• Mono
• All Channel Mono

Additional Features

• Anthem Web User Interface
• Advanced Load Monitoring (ALM)
• 30 Input Configurations
• Input trim adjustments
• Power-on Input Assignment
• Auto Power Off
• Eco Mode (standby)
• Over-the-air Network updates
• USB updates
• Beta updates (over-the-air)
• Backlit Remote Control
