Dali Phantom E-60S - Stereo In-Ceiling Speaker - Piece

Sale priceRs. 36,000

Tax included.

GET GST INPUT

Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.


  • Description
  • Specifications
  • Reviews

The PHANTOM E-60 S is their first in-ceiling stereo speaker. Featuring two 20 mm tweeters, its compact size is well suited to small to medium-sized rooms or as height speakers in a multi-channel setup.

Easy Installation

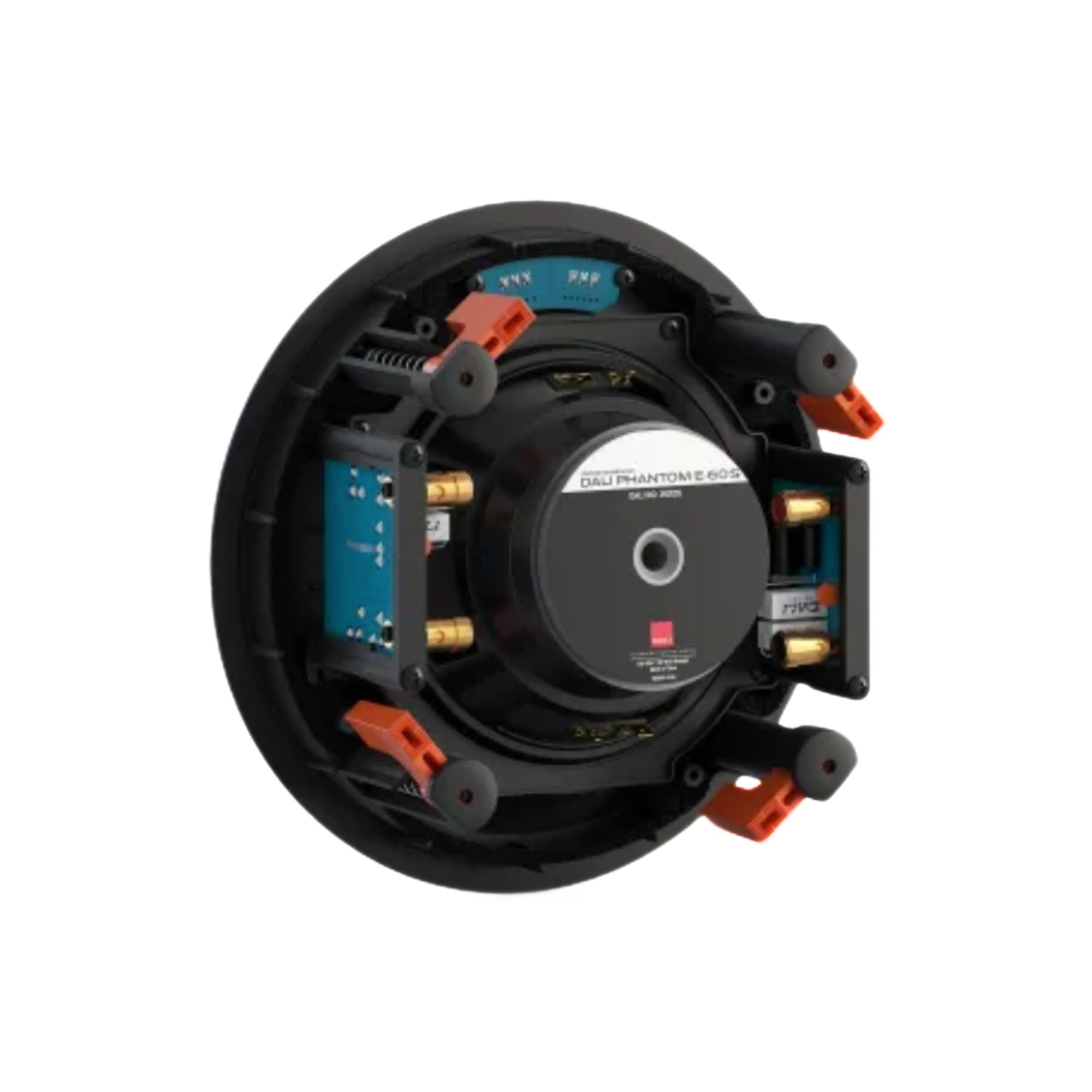

The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place.

Discreet Design

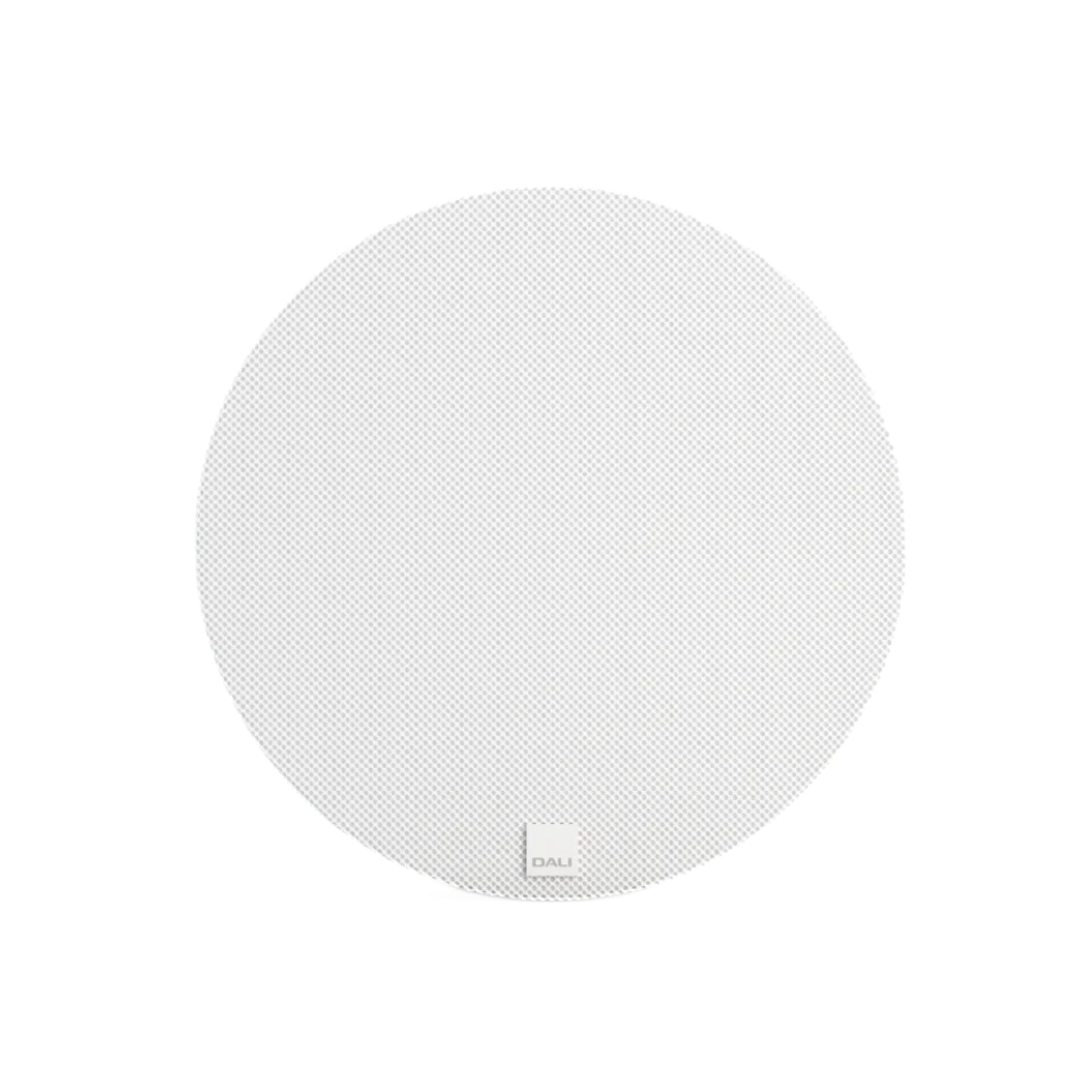

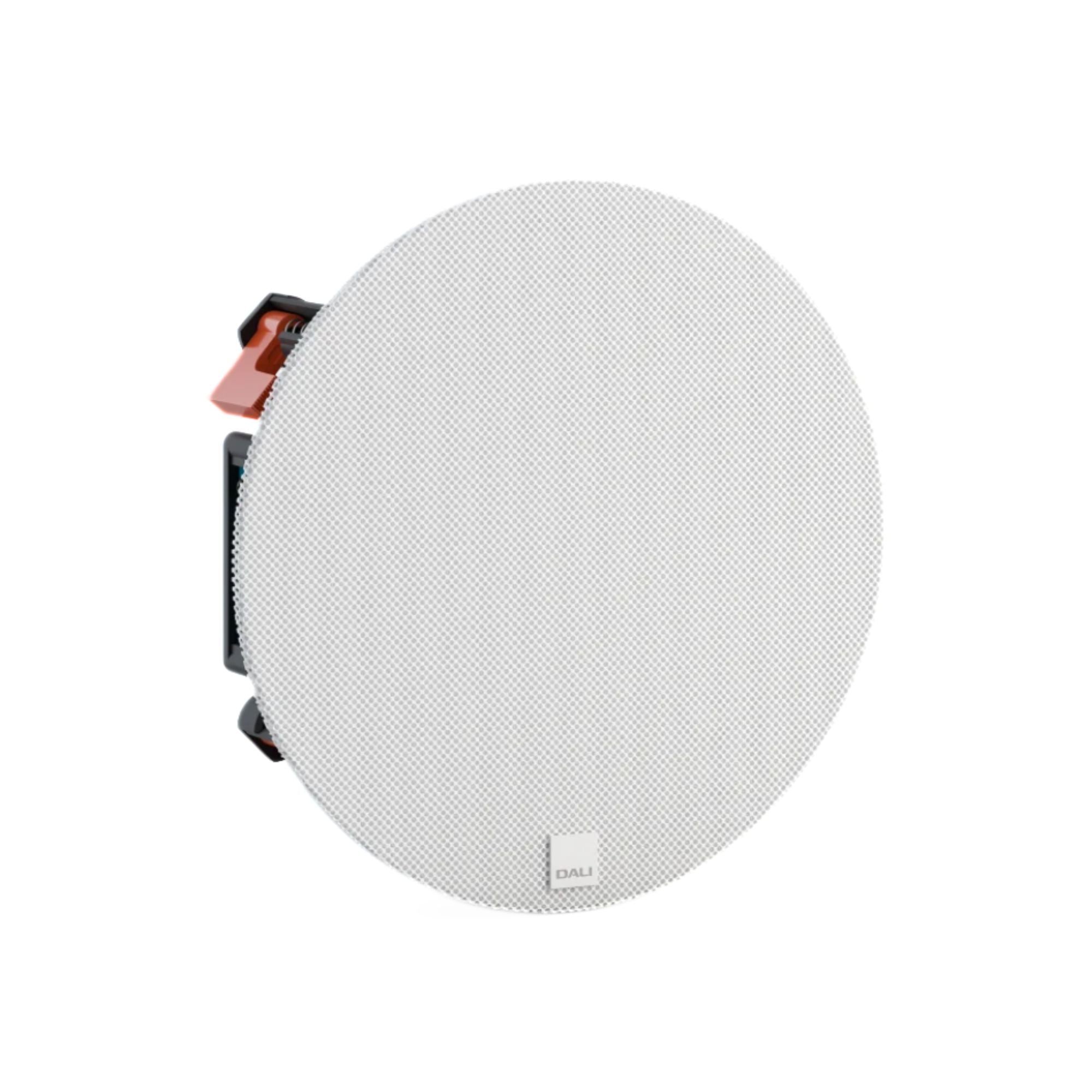

The thin magnetic front grilles integrate seamlessly into any home environment.

Functional Flexibility

The PHANTOM E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space.

Wide Dispersion

Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers.

In-Ceiling Height Speaker

Great stereo in small to medium sizes

The new PHANTOM E-60 S stereo speaker builds on the heritage of the highly acclaimed DALI PHANTOM E-60 in-ceiling speaker. Featuring two 20 mm soft dome textile tweeters, you will experience a wider than average audio experience from this true stereo speaker. Two switches ensure that both channels can be tuned for the acoustics of your listening room, resulting in fantastic integration and a high level of detail. The PHANTOM E-60 S delivers great stereo sound in small to medium sized rooms and can also be used as a height speaker in a multichannel setup.

Design Details

Every detail thought through

Thick edges around the PHANTOM E-60 S baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 S integrate perfectly into any room.

High Quality Crossover

Made from audiophile components

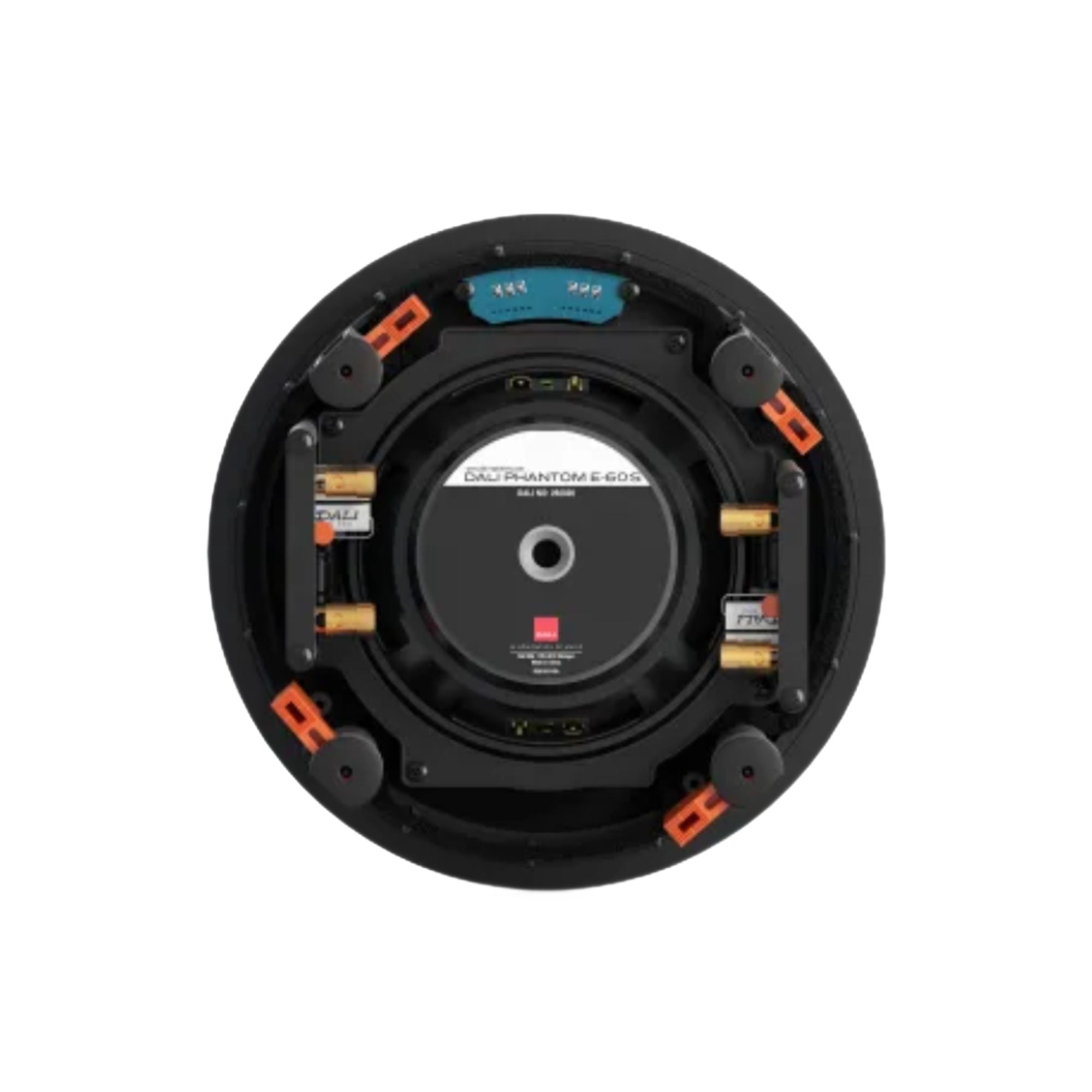

Designed specifically for this speaker, the components used for the PHANTOM E-60 S crossover has been chosen for their audiophile quality. The signal path is a dual-mono construction with separate inputs and crossover circuit boards for each channel, and the internal wiring is optimised for the speaker design and secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while the spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Twin Tweeter

Delivering high-frequency performance

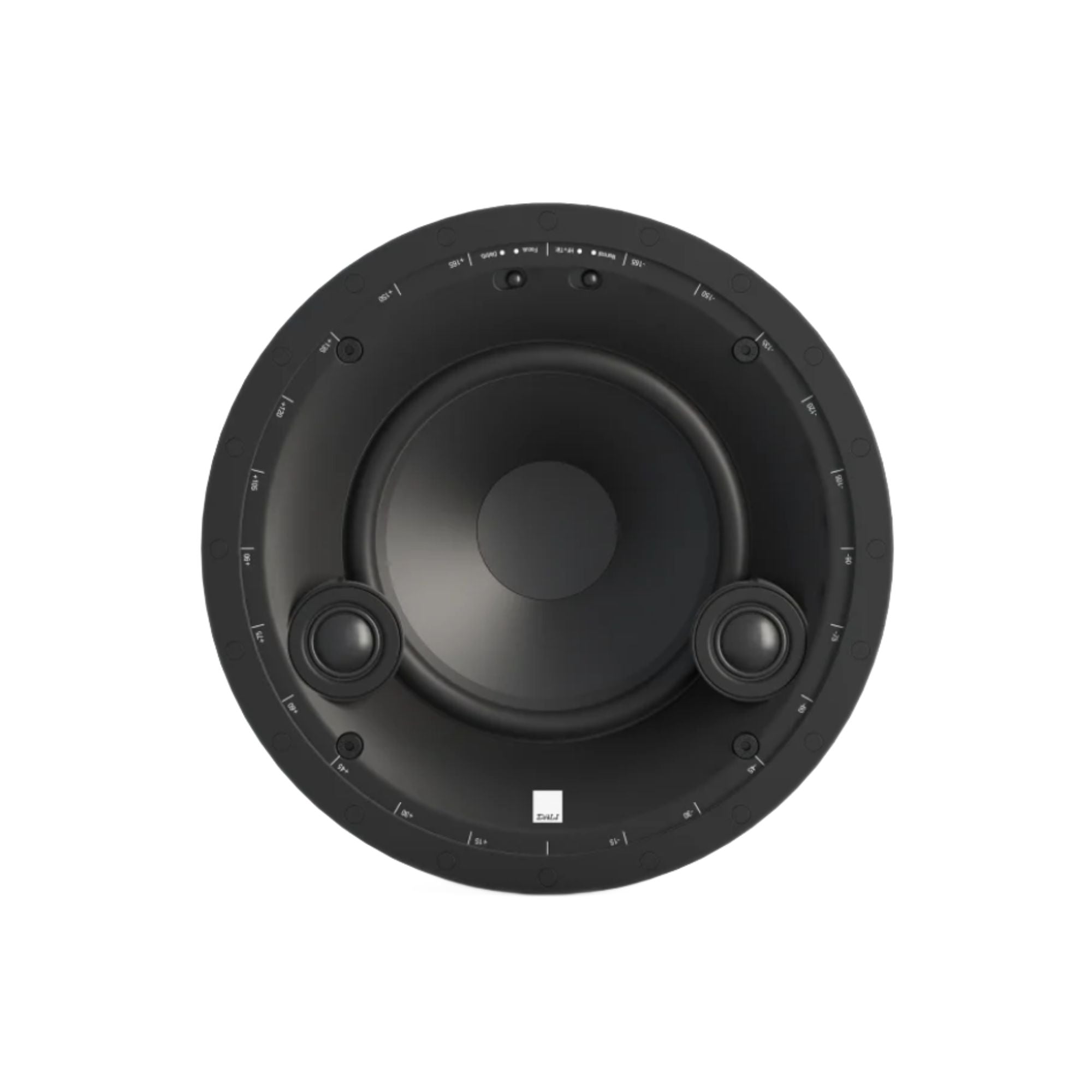

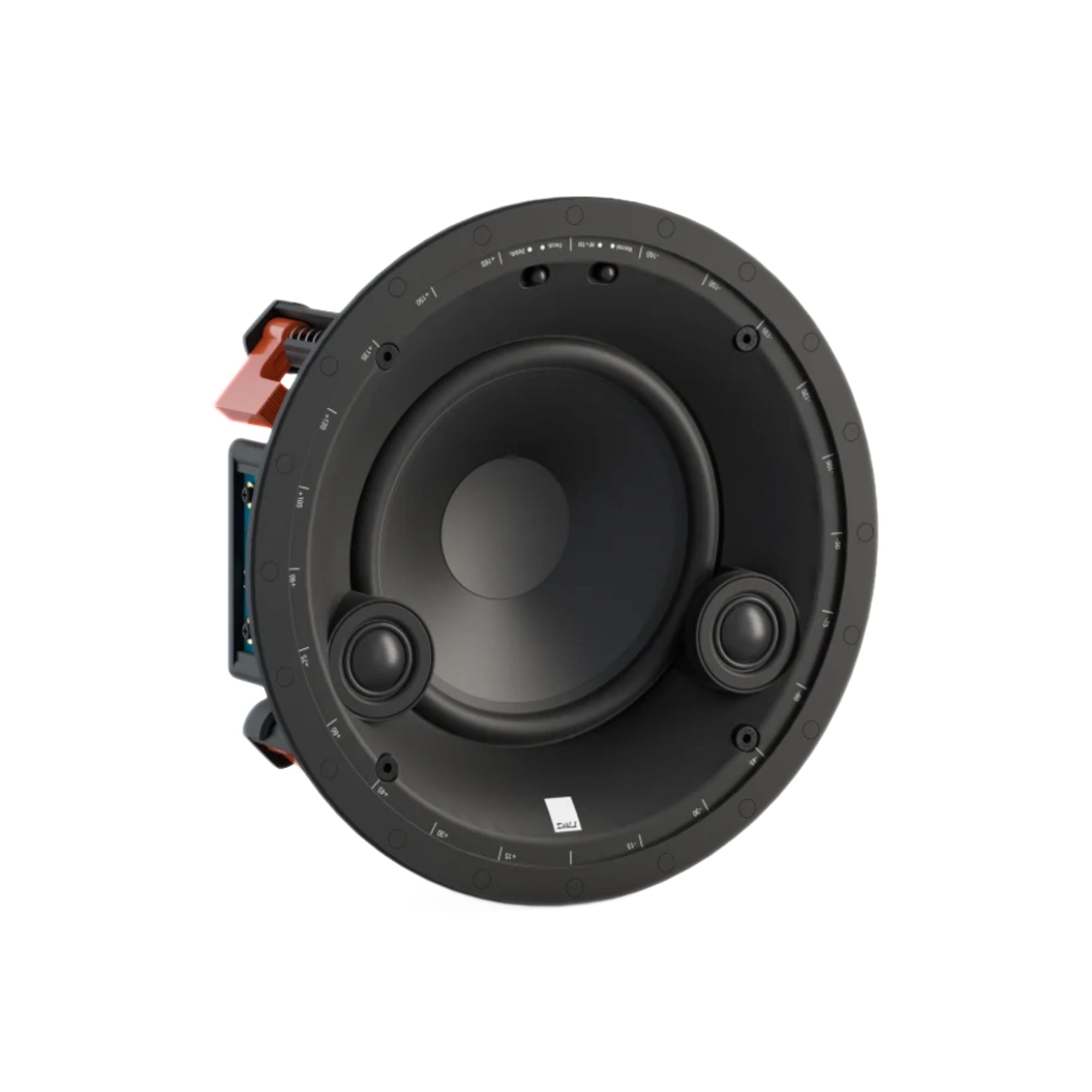

The two 20 mm ultra-lightweight soft dome tweeters coupled with the polypropylene woofer from the other PHANTOM E series speakers ensure a compact, high quality, two-way, two-channel performance. The 144 mm distance between the tweeters also helps to maximiser the stereo performance.

Polypropylene Woofer

Designed with low loss principles

To ensure the best balance between durability and great audio reproduction, the 6½" woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to their low loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 S to deliver a high-quality audio experience.

Frequency range

57 - 25,000 Hz ±3 dB

Sensitivity

90 dB @ 1 m for 2.83 V (both channels)

Nominal impedance

8 + 8 ohm

Maximum SPL

105 dB

Crossover frequency

2,600 Hz

Crossover principle

2+2-way

Recommended amplifier power

2 x 20 - 80 Watt

High frequency driver

2 x 20 mm soft dome

High frequency diaphragm

Soft woven fabric

Low/Mid frequency driver

1 x 6½ inch dual voice coil

Low/Mid frequency diaphragm

Polypropylene

Connection input

2 x Single wire

Enclosure type

Open back

Other features

Normal L High+
Normal R High+

Installation location

In-ceiling/In-wall

Recommended placement

Ceiling/Front/Centre/Surround

IP rating

N/A

Outer dimensions incl. grille
(H x W x D)

Ø 258 x 109 mm

Ø 10.16 x 4.30 inches

Outer dimensions excl. grille
(H x W x D)

Ø 242 x 105 mm

Ø 9.53 x 4.14 inches

Cut-out dimensions

Ø 225 mm, Ø 8.86 inches

Mounting depth

101 mm, 3.98 inches

Recommended rear volume (backbox)

5 - 35 litres

Optimum rear volume

15 litres

Ceiling/wall thickness
(total dog-leg span)

10 - 70 mm
0.39 - 2.76 inches

Weight incl.grille

2 kg
4.40 lb

Shipping weight

3 kg
6.60 lb

Finish

White

Accessories

Manual

Cut-out template

Front grille

Logo badge
