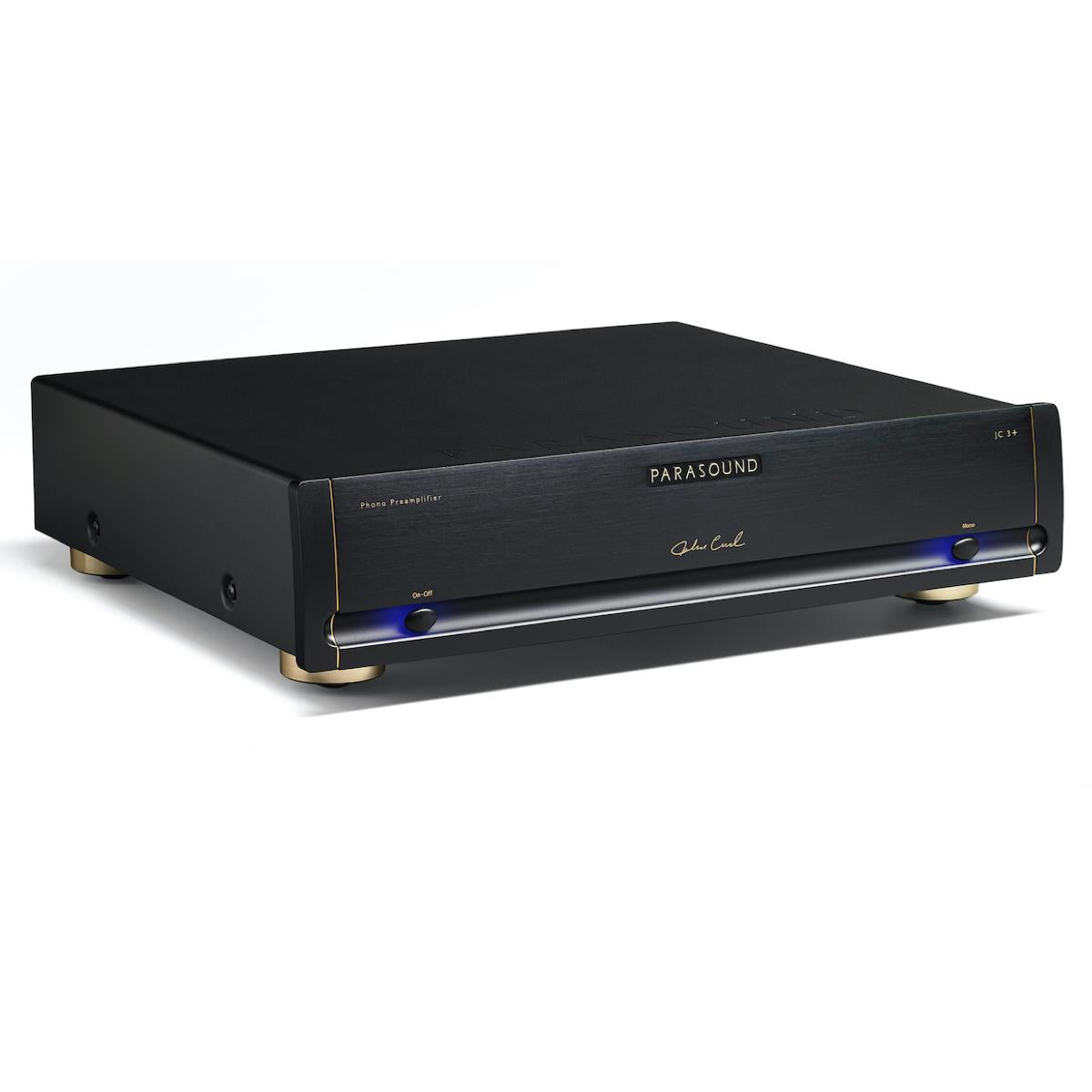

Parasound Halo JC 3+ Phono Preamplifier

Sale priceRs. 362,000

Includes GST of Rs. 55,220

GET GST INPUT

Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.


  • Description
  • Specifications
  • Reviews

PARSOUND HALO JC 3+

Features

  • Designed by John Curl - creator of the legendary Vendetta Research phono preamp

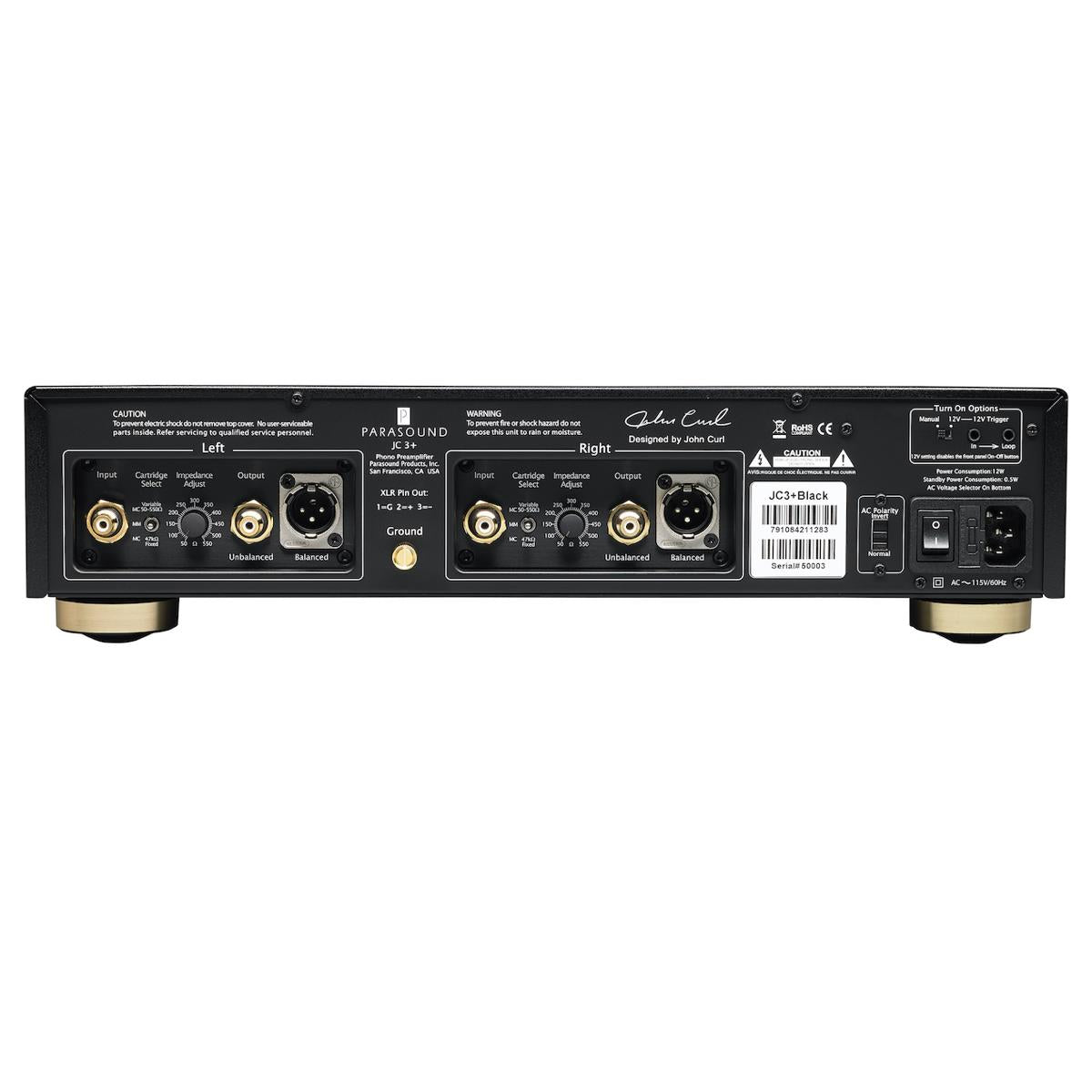

  • Inputs and outputs use Vampire brand 24k gold-plated RCA jacks
  • Balanced outputs use Neutrik brand premium XLR jacks
  • MM 47k ohm, MC 47k ohm or MC variable 50-550 Ohms
  • RIAA accurate within 0.2 dB
  • Exclusively Vishay-Dale resistors in the audio path
  • Triple shielding; low-carbon mild steel partitions isolate the power supplies & AC wires

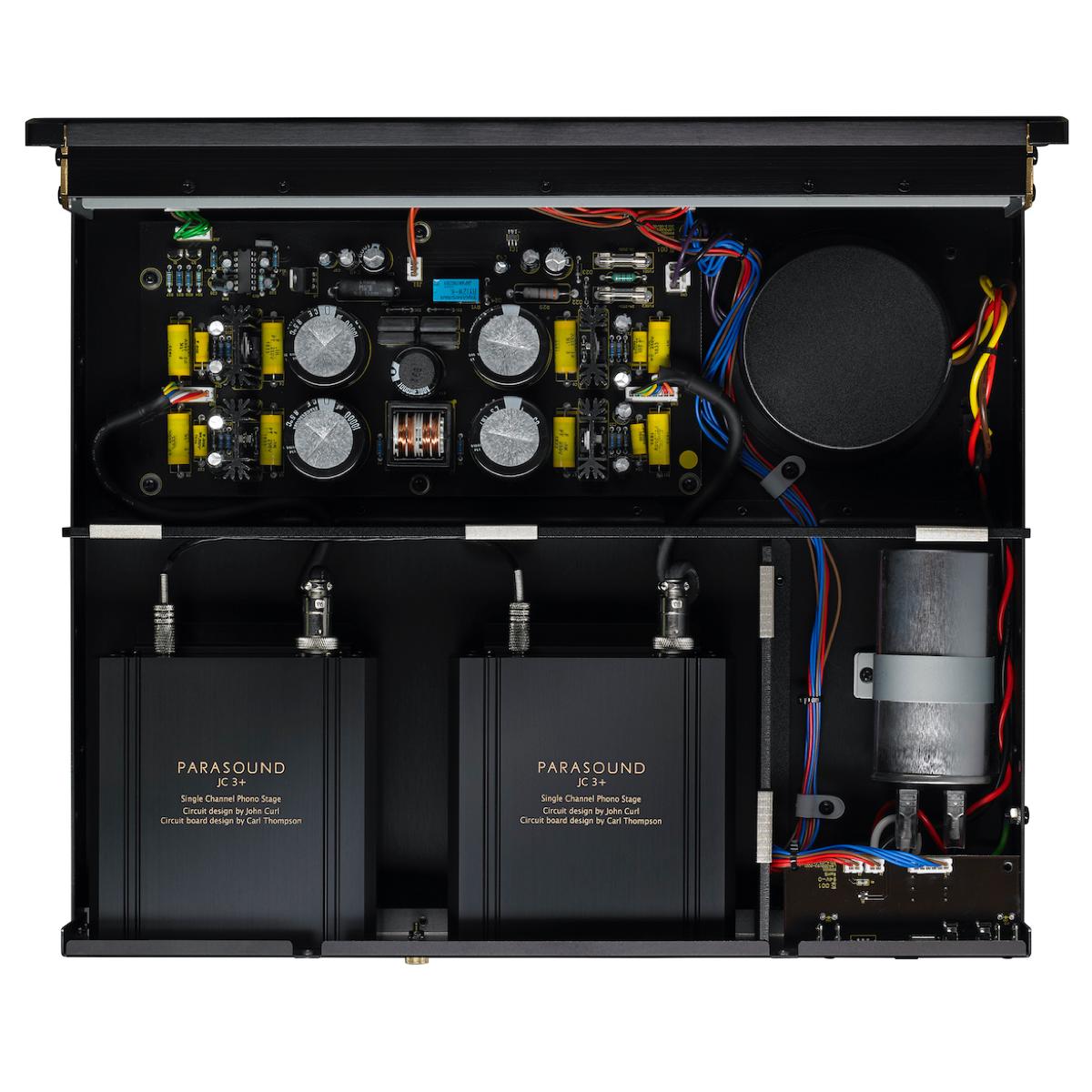

  • Dual mono design; each audio channel is separately enclosed in its own extruded aluminum enclosure
  • Separate high speed-soft recovery rectifiers, filter caps and voltage regulators for each channel
  • Mono switch can improve sound of mono and older LPs
  • Built-in AC line conditioner to prevent AC noise from polluting the circuits
  • AC polarity reverse switch can reduce hum in many systems
  • Non-magnetic aluminum rear panel for purest sound
  • Turn On Options switch: manual or auto with 12v trigger input
  • Premium detachable heavy gauge IEC AC cord
  • 2u Chassis, rack mountable with HRA2 (sold separately)

How the JC 3+ improves on the original JC 3:

  • Variable MC load adjust independent for each channel from 50-550 ohms with dual gang potentiometers specially made for Parasound by Vishay.
  • Curl-Thompson tweaked circuits to further reduce the JC 3 silent background noise.
  • 24k gold plated copper traces on phono module boards for utmost conductivity and most transparency/detail in the music.
  • 47% larger low ESD power supply filter caps greater reserve for head-snapping dynamics.
  • Ability to turn off illumination of the front panel P logo.

Frequency Response

20 Hz - 20 kHz, +/- 0.2 dB

Total Harmonic Distortion

< 0.01% at 1 kHz

Signal to Noise Ratio, MM

  • > 87 dB, input shorted, IHF A-weighted
  • > 78 dB, input shorted, unweighted

Signal to Noise Ratio, MC

  • > 87 dB, input shorted, IHF A-weighted
  • > 67 dB, input shorted, unweighted

Interchannel Crosstalk

72 dB at 1 kHz

Input Impedance

  • MM: 47k Ω
  • MC: 50 - 550 Ω variable, 47k Ω fixed

Output Impedance

  • Unbalanced: < 100 Ω
  • Balanced: < 100 Ω per leg

Input Capacitance

150 pF

Input Sensitivity at 1 kHz

  • MM: 4mV for 1 V output
  • MC: 600µV for 1 V output

Total Gain

  • MM: 48 dB
  • MC: 64 dB

XLR Pin Identification

  • 1 = Ground (Shield)
  • 2 = Positive
  • 3 = Negative (Return)

AC Power Requirement

  • Standby: 1 watt
  • Power On: 12 watts
  • 115 or 230 VAC 50 - 60 Hz
  • (Selected on Chassis Bottom)

Dimensions

  • Width: 17-1/4" (437mm)
  • Depth: 13-3/4" (350mm)
  • Height, with feet: 4-1/8" (105mm)
  • Height, without feet: 3-1/2" (89mm)

Weight

11.8Kg
