Description

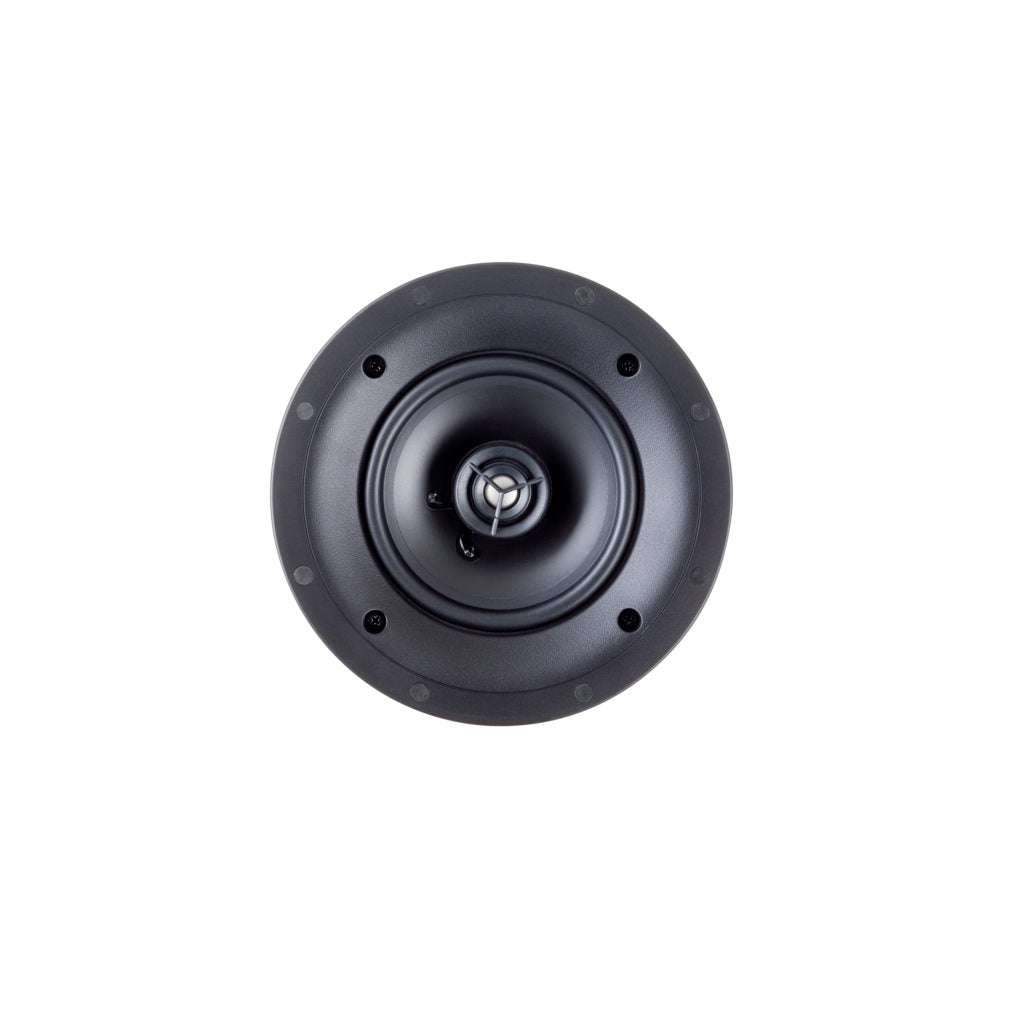

Paradigm CI Home H55-R

CI Home Series: Your ‘Go-To’ Custom Install Speaker

The CI Home™ series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

Quick Specs

  • In-ceiling round (optional square grille).
  • 3/4″ PTD™ dome tweeter.
  • 5.5″ mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
  • Bezel-Free Micro-Perf Grille.

High-Quality Components Make An Audible Difference



  • Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
  • Pocketed screw holes help to hold the drill steady, making installation a snap.
  • Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
  • Rigid ABS clamps cut down on installation time and simplifying installation.
  • Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.
  • NEW Bezel-Free Micro-Perf Grilles.
  • Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
  • No masking required—this makes the grilles faster and easier to paint, if painting is desired.

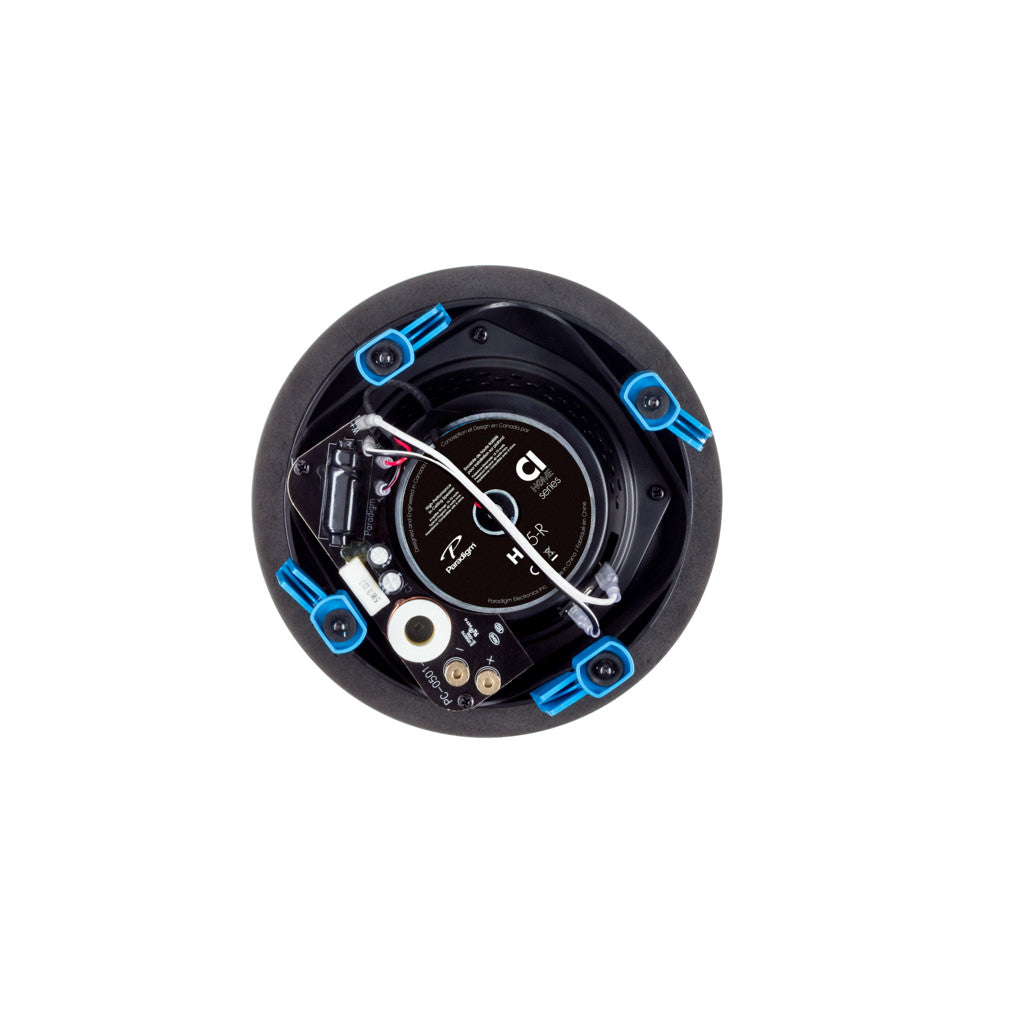

A Solid Installation

Paradigm’s High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer’s job easier and faster!

SPECIFICATIONS

Design

2-driver, 2-way in-ceiling, ABS chassis & mounting clamps

Crossover

2nd-order electro-acoustic at 3.0 kHz

Frequency Response (On-Axis)

±2 dB from 75 Hz - 20 kHz

Frequency Response (30° Off-Axis)

±2 dB from 75 Hz - 18 kHz

High Frequency Driver

3/4" (1.9cm) PTD™ dome

Mid/Bass Frequency Driver

5.5" (14cm) mineral-filled polypropylene cone

Low Frequency Extension

60 Hz

Sensitivity (Room / Anechoic)

88 dB / 84 dB

Impedance

Compatible with 8 ohms

Suitable Amplifier Power Range

15-70 W

Maximum Input Power

40 W

Finishes

White, paintable grille

Weight

2.5 lbs. (1.2 kg)

Overall Dimensions

7.75" (19.7cm) Diameter

3.375" (8.6cm) Depth

Cut-Out Dimensions

6.75" (17.1cm) Diameter

Minimum Mounting Depth

(Depth required is the distance
between 1/2" drywall, or similar material.)

2.75" (7.0cm)
